Check the Ground Lead to the Sensor

Check The Ground Lead To The Sensor

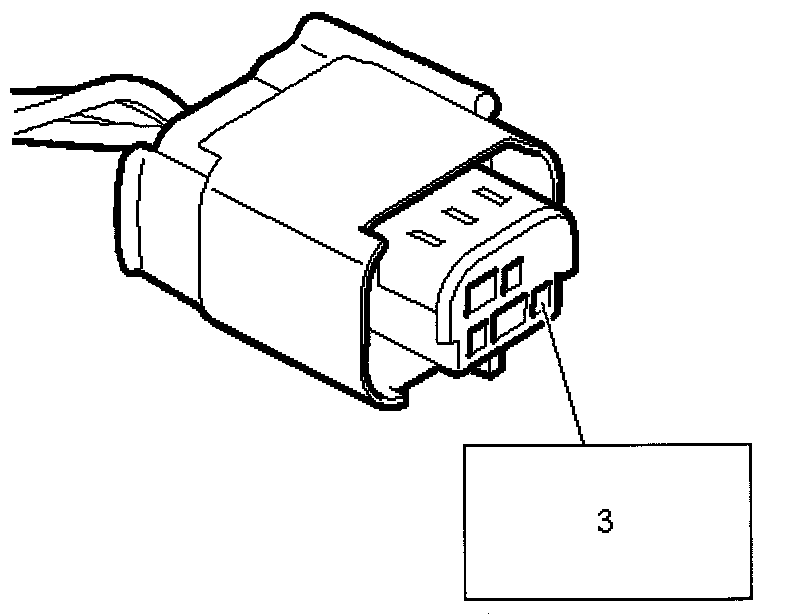

- Connect a test lamp to B+ and pin 3 of the female connector.





- The test lamp should light.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short, circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Continue with Check the ground lead to the sensor

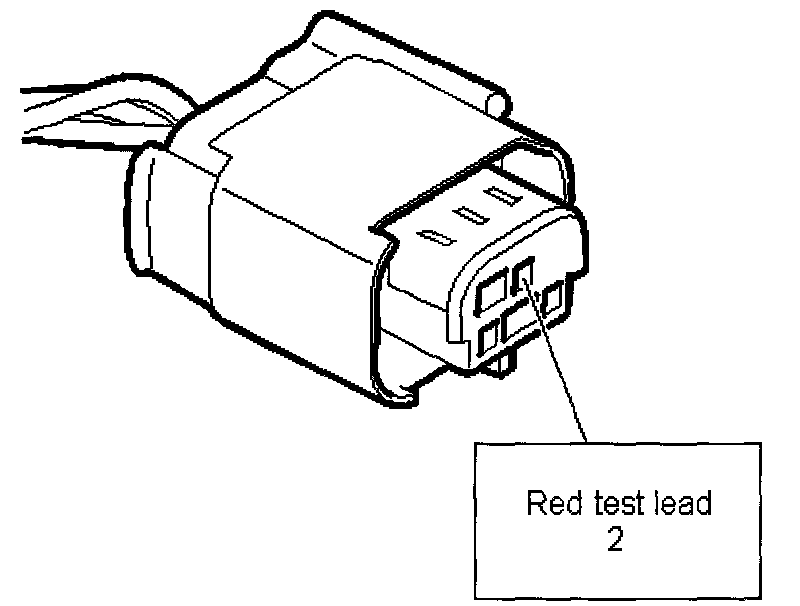

Take a resistance reading between

The reading should be 95 kOhm - 105 kOhm

2 : Middle rear left sensor
B - : Battery ground

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short, circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Checking the Control Module's Sensor Input

YES - Checking the Control Module's Sensor Input (Continued)
