Check Wiring Harness Between Control Module & Passenger Airbag

Check the Wiring Harness Between the Control Module and the Passenger's Side Airbag









- Turn the ignition switch to the OFF position.
- Check the 2-pin connector on the wiring harness for an open circuit/pin slide-out and rectify it if necessary.

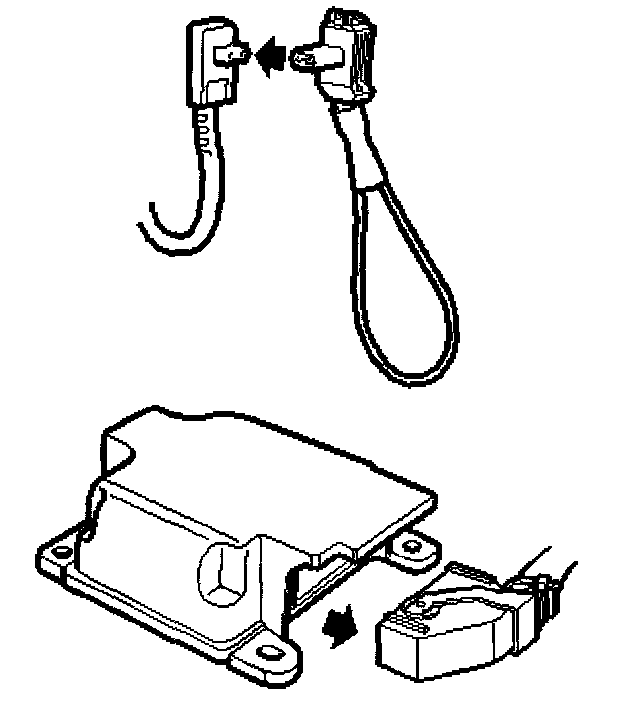

- Connect reference resistor 86 12 095 to the 2-pin female connector.

Unplug the connector
- Control module, Airbag (331)
- Check pins 13 and 14 for an open circuit/pin slide-out and rectify them as necessary.
- Connect the break-out box (BOB) to the wiring harness.

- Select the diagnostic trouble code that was generated

B2868, B2869
B2866, B2867
