Conditions

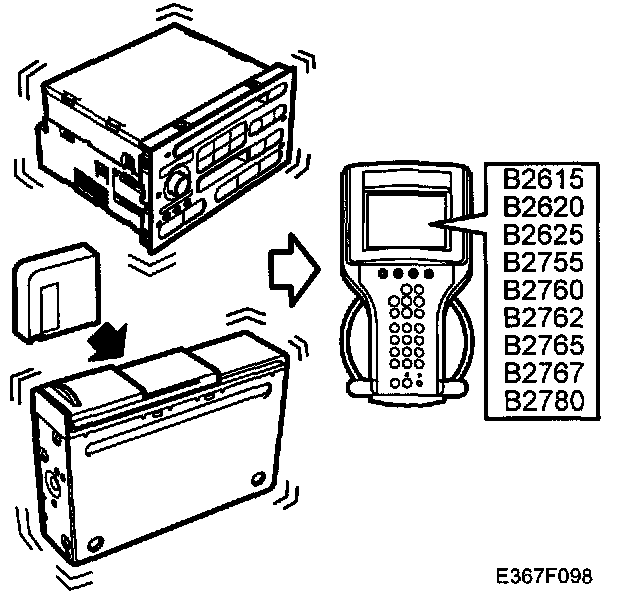

B2615: CD Changer. Faulty Magazine or Mechanical Failure.
B2620: CD Changer. Extreme Vibrations or Mechanical Failure.
B2625: CD Changer. Compact Disc Faulty or Internal Error 1.
B2755: Main Unit/CD Changer. Focus Error.
B2760: CD Changer. Focus Error 2.
B2762: Main Unit. Focus Error 1.
B2765: Main Unit/CD Changer. Compact Disc Faulty or Internal Error 2.
B2767: Main Unit/CD Changer. Compact Disc Faulty or Extreme Vibrations.
B2780: Main Unit. Compact Disc Read Error.

Fault symptoms
The CD player or CD changer will not work and SID displays the following fault information:
- B2615: CDC ERROR 60 (CD changer)
- B2620: CDC ERROR 70 (CD changer)
- B2625: CDC ERROR 19 (CD changer)
- B2755: CD ERROR 02 (main unit)
- B2755: CDC ERROR 02 (CD changer)
- 82760: CDC ERROR 11 (CD changer)
- B2762: CDC ERROR 14 (CD changer)
- B2762: CD ERROR 14 (main unit)
- B2765: CD ERROR 12 (main unit)
- B2765: CDC ERROR 12 (CD changer)
- B2767: CDC ERROR 17 (CD changer)
- B2767: CD ERROR 17 (main unit)
- B2780: CDC ERROR 30 (CD changer)
- B2780: CD ERROR 30 (main unit)

Conditions
Diagnostic trouble codes B2625, B2755, B2760, B2762, B2765, B2767 and B2780 are generated if there is din on the disc if the disc is the wrong way up or if there is a faulty disc in the CD changer or CD player.

The codes can also be generated if there is a mechanical fault with the CD changer or CD player.

Diagnostic trouble code B261 5 is generated if a faulty magazine is used or if there is a mechanical fault in the CD changer.

Diagnostic trouble code B2620 is generated if the CD player is exposed to extreme vibrations or if there is a mechanical fault in the

CD changer.
Diagnostic trouble code B2767 can be generated if the main unit or CD changer is exposed to extreme vibrations.

Diagnostic help
CD changer:
Check that the transport screws have been removed and that the mounting position screws are correctly set.

Check that the CD changer is properly mounted.
