Checking Control Module Input With Open Circuit

Checking Control Module Input With Open Circuit

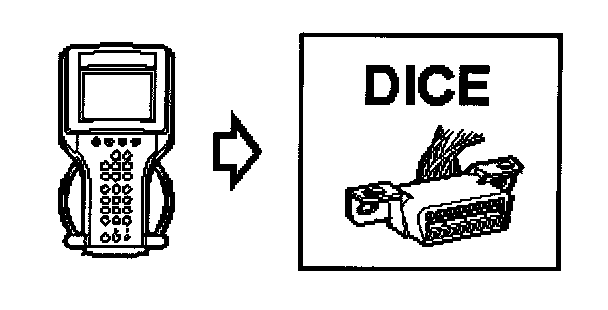

- Contact DICE.
Reading: Front Intermittent Wiper Switch





The reading should be 15 s

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Checking Control Module Input With Jumpered Circuit
