Conditions

B2360

A/C Pressure Sensor. Short to ground
A/C Pressure Sensor. Open circuit/short to B+





Fault symptoms
A/C system does not supply cold air.

Conditions
Shorting to ground is set if:

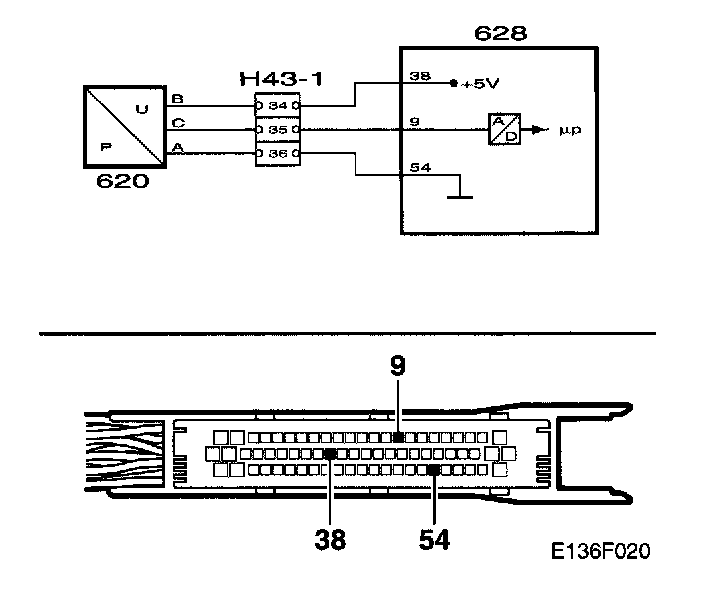

- pin 9 on the control module is shorting to ground
- the voltage is below normal measuring range.
Open circuit/short circuit is set if:
- pin 9 on the control module is shorting to B+
- the voltage is above normal measuring range.

Diagnostic help
The pressure in the A/C system can be read on the diagnostic tool.
