Conditions

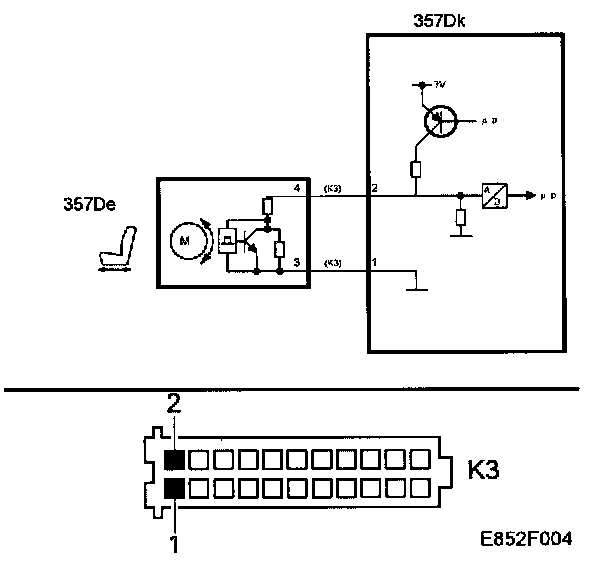

Legroom Adjustment Hall Sensor. Short to Ground

Legroom Adjustment Hall Sensor. Open Circuit / Short to B+





Fault symptoms
The motor for the legroom adjustment can be operated for 500 ms.

Conditions
Open circuit/short-circuit to B+.
Short-circuit to ground
