Conditions

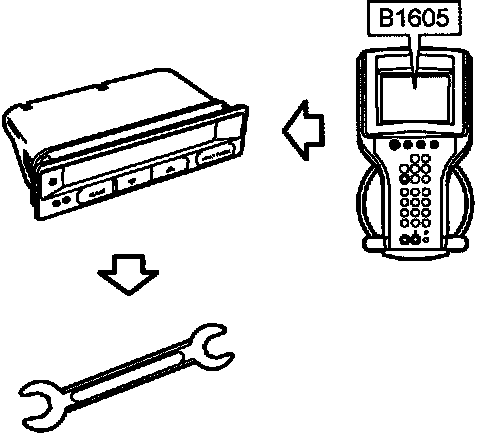

Control module fault





Fault symptoms
Certain functions or all functions stop working.

Condition
Components inside the control module are faulty.

Check the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostics instrument during the test.
