Fault Symptoms

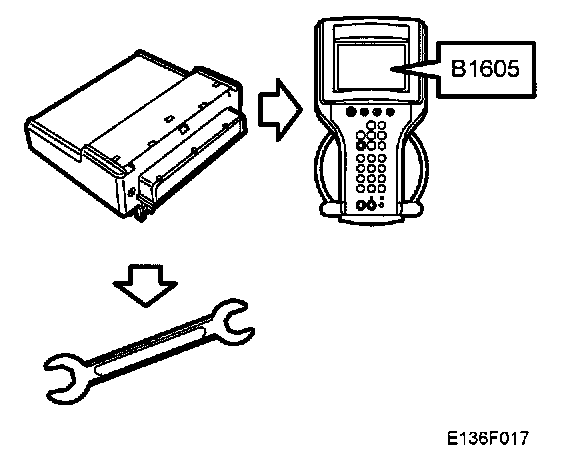

Internal Fault

Fault symptoms
Varies depending on fault characteristics.

Conditions
The control module on-board diagnostics has detected an internal fault.

Check wiring harness.
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the leads.
Observe the multimeter, test lamp or diagnostic instrument during the test.
