Conditions

Signal Ground. Missing

Fault symptoms
Malfunction

Condition

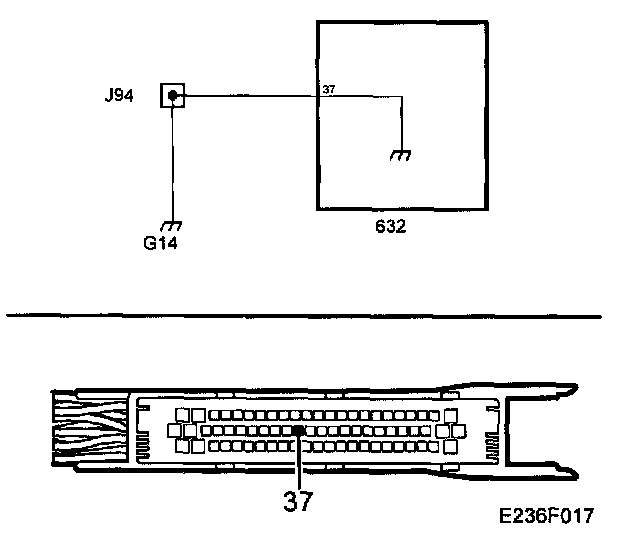

No ground connection at pin 37.

Check wiring harness
Touch and move the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the harness. Monitor the multimeter, test lamp or diagnostic instrument during the test.
