Conditions

Power Ground. Missing

Fault symptoms
Central looking does not work.

Condition

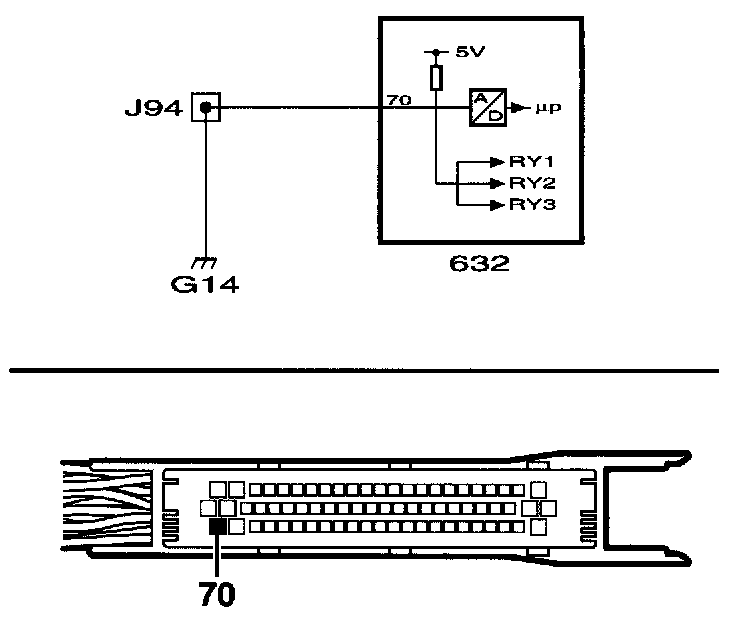

No ground connection at pin 70.

Check wiring harness
Touch and move the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the harness. Monitor the multimeter, test lamp or diagnostic instrument during the test.
