Check the Contact Roller

Check the Contact Roller

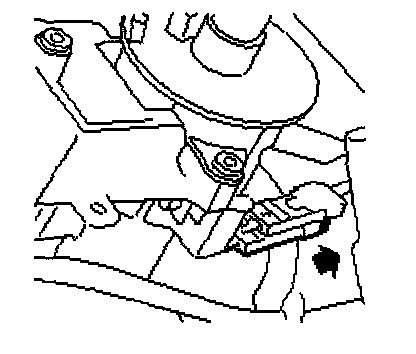

Plug in the connector
- Contact roller, steering wheel (336a)

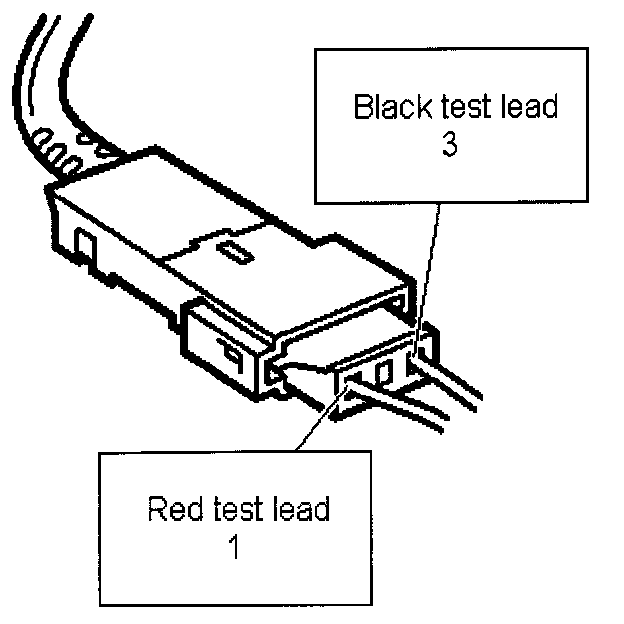

Take a resistance reading between

- 1 - Contact roller, steering wheel
- 3 - Contact roller, steering wheel

The reading should be 2 Ohm - 4 Ohm

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Changing Components - I

YES - Check the Wiring Harness Between the Control Module and Airbag
