Rectifying the Lead - I

Rectifying The Lead





There is a permanent fault.

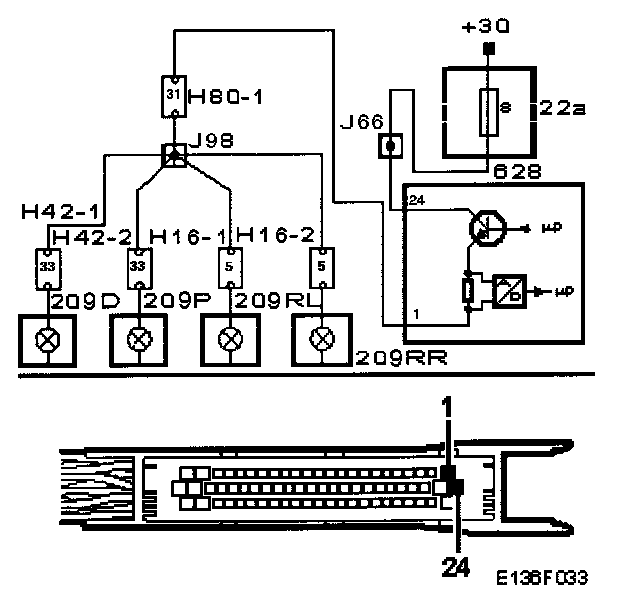

- Check the lead from DICE pin 1 to crimp connection J98 and on to the courtesy lighting in the door for shorting, and repair or replace it as necessary.

After performing this procedure Final Check
