Rectifying the Lead - II

Rectifying The Lead

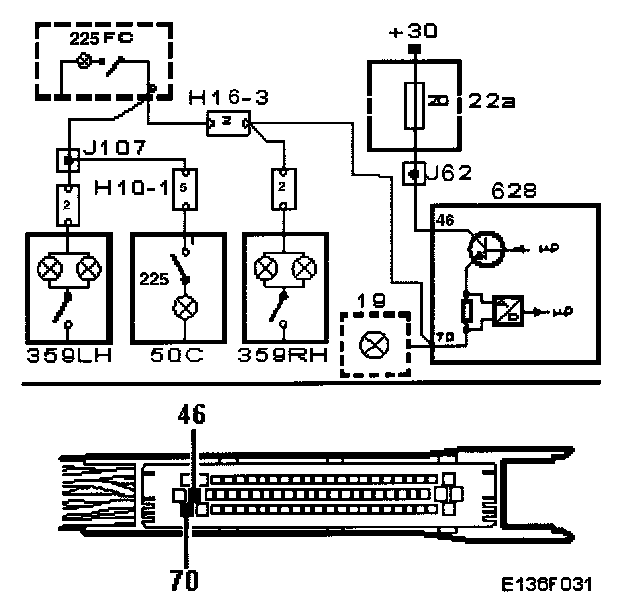

- Repair or replace the lead from pin 70 of the control module to the glove box lighting and the lead from pin 70 of the control module to the vanity mirror lighting and pin 9 of the switch to pin 1 of the rear reading lamps.

After performing this procedure Final Check
