Check Whether the Fault Is Permanent - II

Check Whether The Fault Is Permanent





- Set the interior lighting switch to its centre position.





- Turn the ignition switch to the ON position.

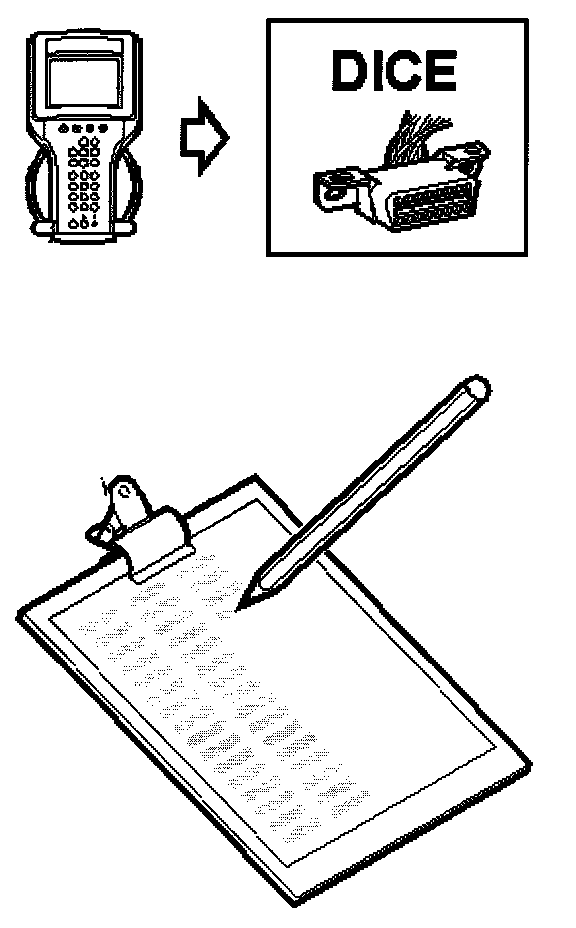

- Contact DICE.
- Obtain readouts of diagnostic trouble codes.





- Note all diagnostic trouble codes.

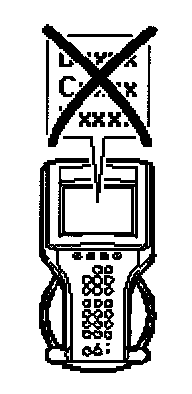

- Clear the diagnostic trouble codes in all systems.





- Turn the ignition switch to the OFF position.





- Turn the ignition switch to the ON position.

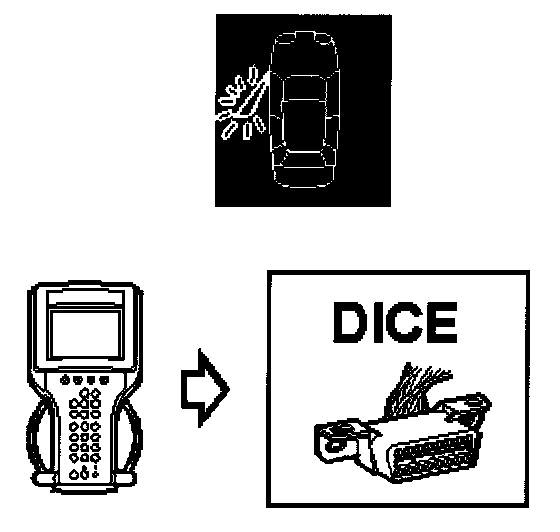

- Open a door
- Contact DICE.

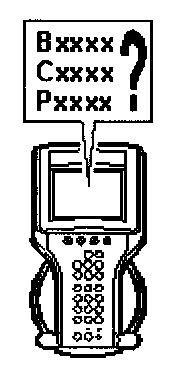

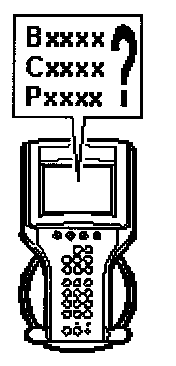

- Obtain readouts of diagnostic trouble codes.

Is diagnostic trouble code B1220 present?

NO - Rectifying the Lead - V

YES - Rectifying the Lead - II
