Fault Symptoms

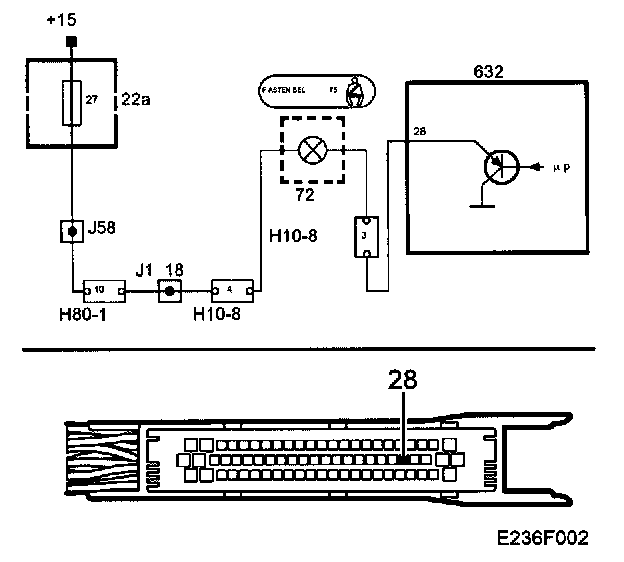

Seatbelt Warning Lamp. Short to B+
Seatbelt Warning Lamp. Open Circuit/Short to Ground





Fault symptoms
A short-circuit to B+ gives the symptom that the seat belt warning lamp does not light.
An open-circuit/short-circuit to ground gives the symptom that the seat belt warning lamp lights irrespective of the buckle lock contact.

Conditions
No diagnostic trouble code is generated for voltages under 11 V and during diagnostic communication.

Diagnostic help
The control module output can be activated with the diagnostic tool.
