Checking the Power Supply

Checking The Power Supply





- Turn the ignition switch to the ON position.

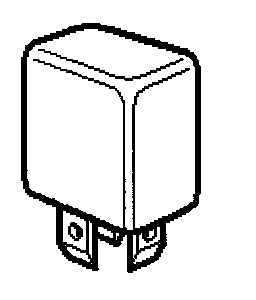

- Remove component: Relay, electrically heated rear seat

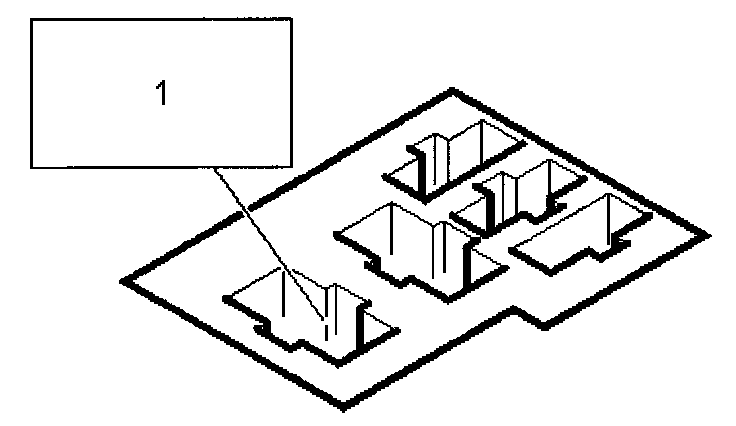

- Connect test lamp 86 11 857 to pin 1 (30) of the relay holder and a good grounding point.





- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking the Relay Coil's Power Supply
