T7 4-CYL

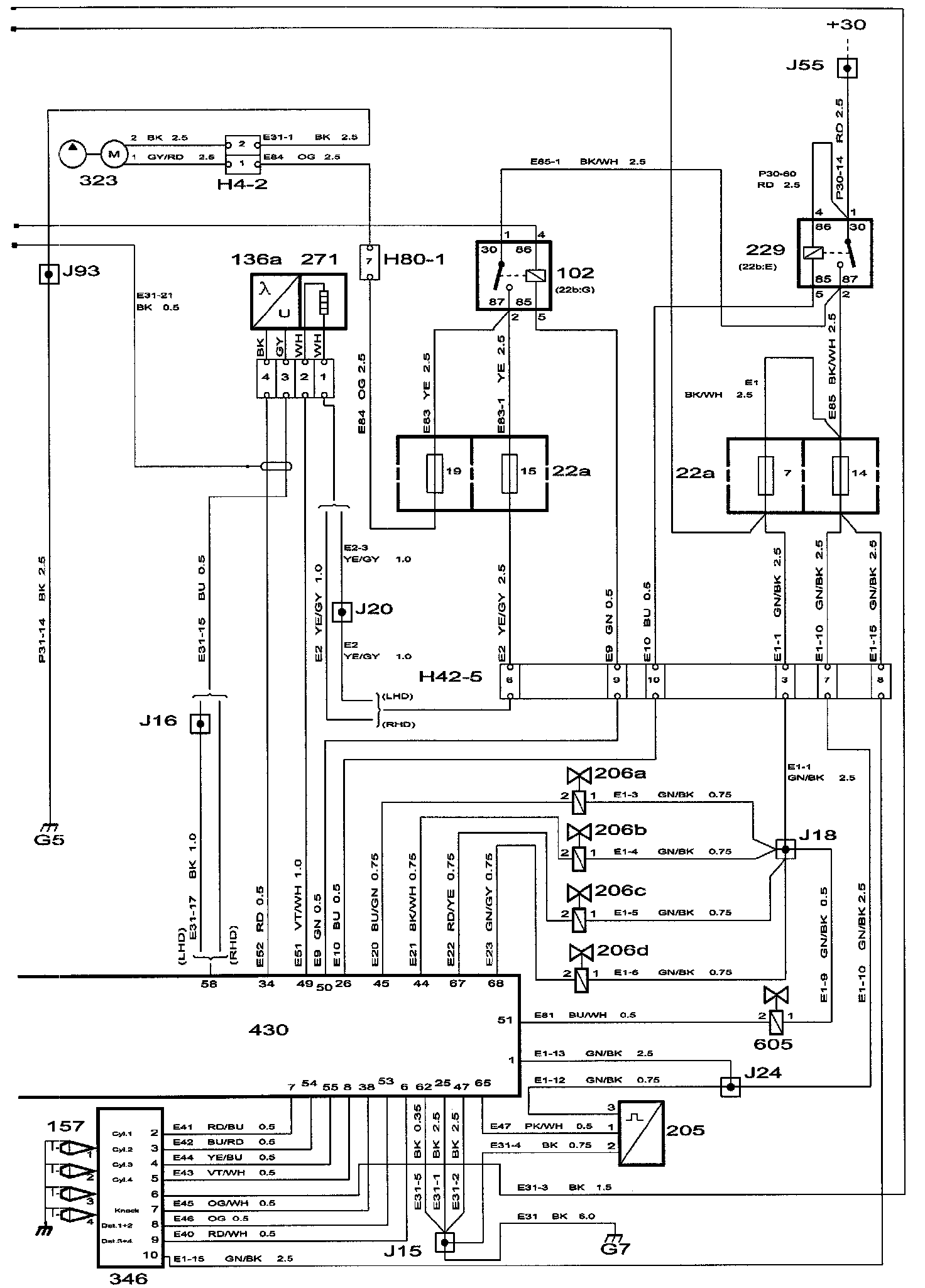

T7 4-Cyl Wiring Diagram (1 Of 3):

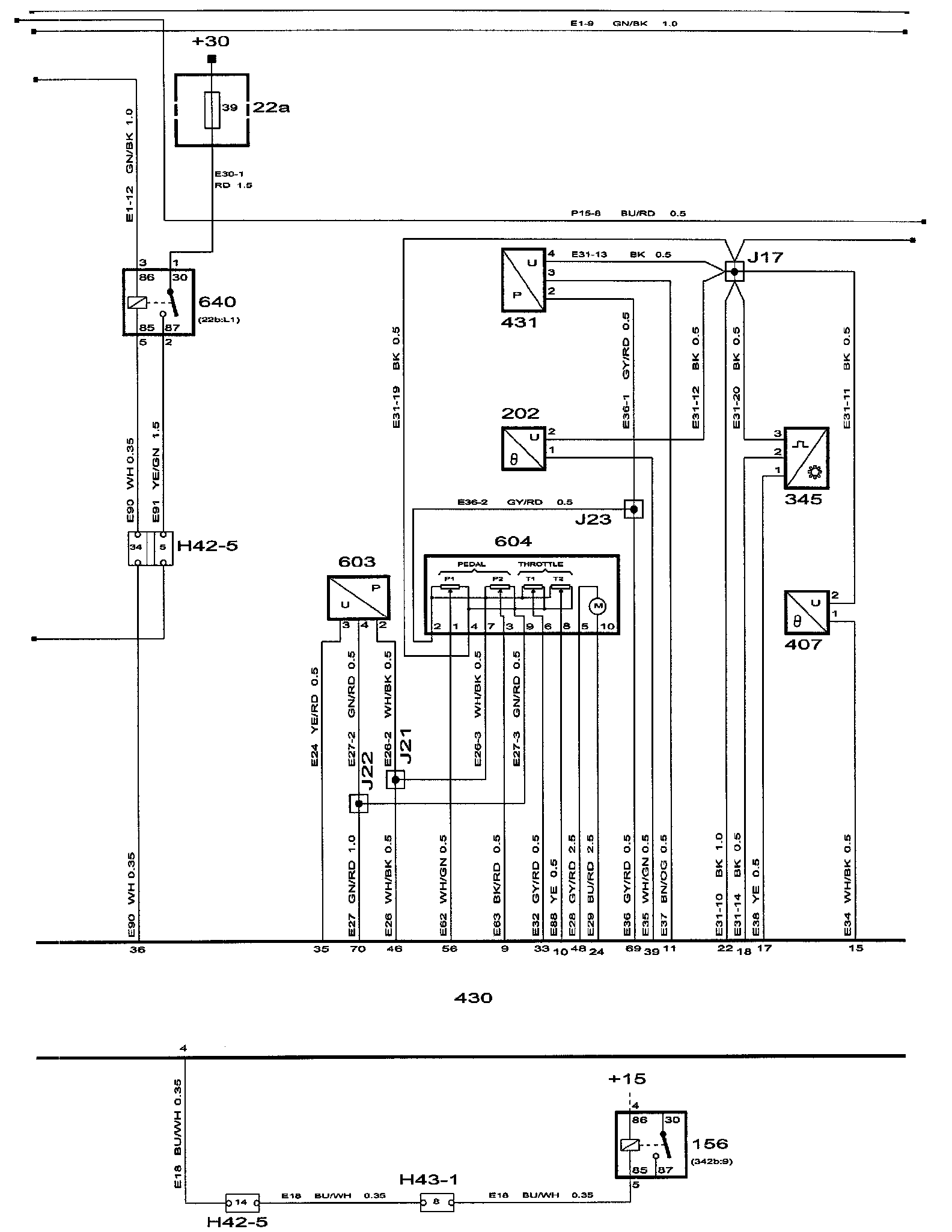

T7 4-Cyl Wiring Diagram (2 Of 3):

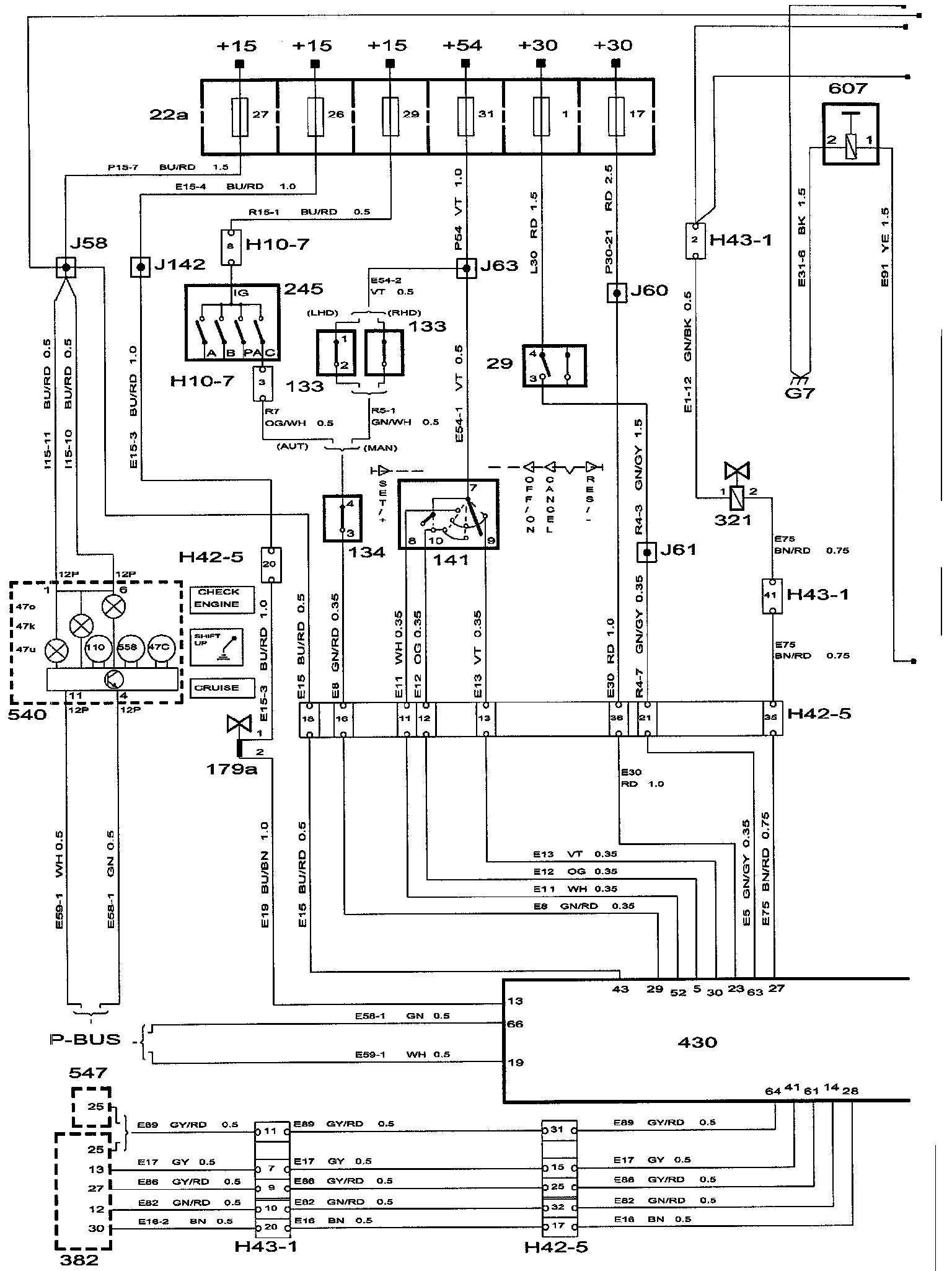

T7 4-Cyl Wiring Diagram (3 Of 3):




Wiring Diagram

No. Name / Location
22a Main fuse board, dashboard / on end of dashboard by driver's door
29 Connector, brake lights / on pedal bracket
133 Switch, clutch, cruise control / on pedal bracket
134 Switch, brake, cruise control / on pedal bracket
141 Switch, cruise control / integrated in direction indicator stalk switch to left of steering column
179a Boost pressure control valve / on bracket on front of cylinder head
245 Transmission range switch 1, automatic transmission / on the gearbox
321 EVAP canister purge valve / on hose to mass air flow sensor
382 Control module, TC/ABS / integrated in brake unit behind battery
430 Control module, Saab Trionic / in space (cabin side) in front of windscreen on passenger side
540 Main instrument unit / in front of driver in dashboard
547 Control module, ABS / integrated in brake unit behind battery
607 Solenoid, limp-home / on throttle body

10-pin connectors
H10-7 Under the battery tray.

42-pin connectors
H42-5 In the centre of the bulkhead (engine-bay side)

43-pin connectors
H43-1 White connector in connector bracket under LH A-pillar

Crimp connections
J58
LHD: Approx. 50 mm from MIU branching point (12-pin connector) towards data link connector
RHD: Approx. 100 mm from the SID branching point towards the radio.

J60
LHD: Approx. 30 mm from DICE branching point towards main fuse board
RHD: Approx. 20 mm from DICE branching point towards engine bay grommet

J61
LHD: Approx. 90 mm from branching point of floor lighting (front left) towards DICE control module
RHD: Approx. 210 mm from branching point of grounding point G40 towards the radio

J63
LHD: Approx. 300 mm from branching point grounding point G40 towards DICE control module
RHD: Approx. 210 mm from MIU branching point (20-pin connector) towards DICE

J142
LHD: Approx. 60 mm from DICE branching point towards engine bay grommet
RHD: Approx. 120 mm from branching point DICE control module towards main fuse board

Grounding points
G7 - On the engine
