Checking Front Down

Checking Front Down

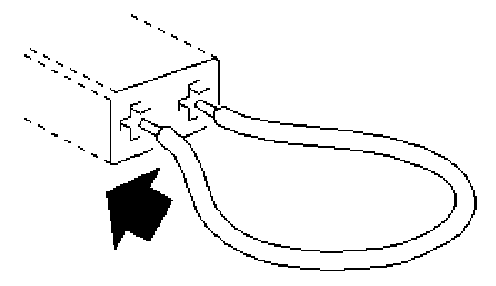

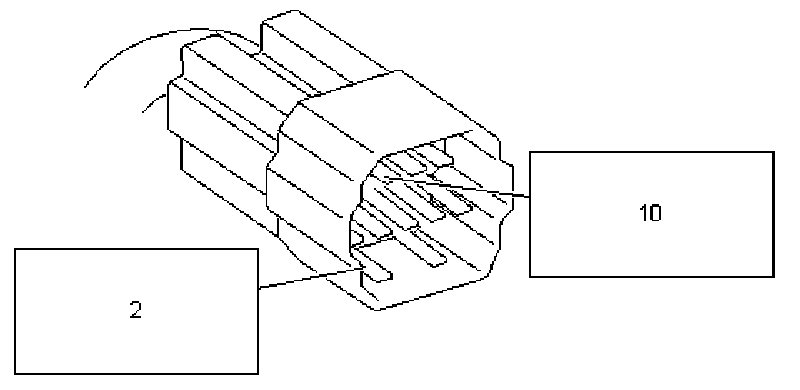

^ Connect a jumper lead between pins 2 and 10 of the male connector.

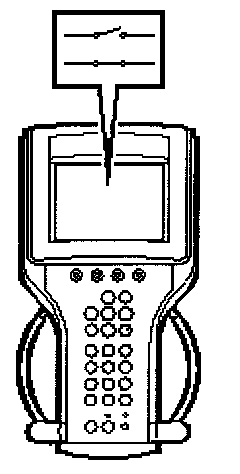

^ Read value: Seat Front Down (PSM).
The diagnostic tool should show ON when the jumper lead is connected and OFF when it is removed.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO ^ Rectifying the Lead

YES ^ Checking Rear Up
