Inputs For the Anti-Theft Alarm

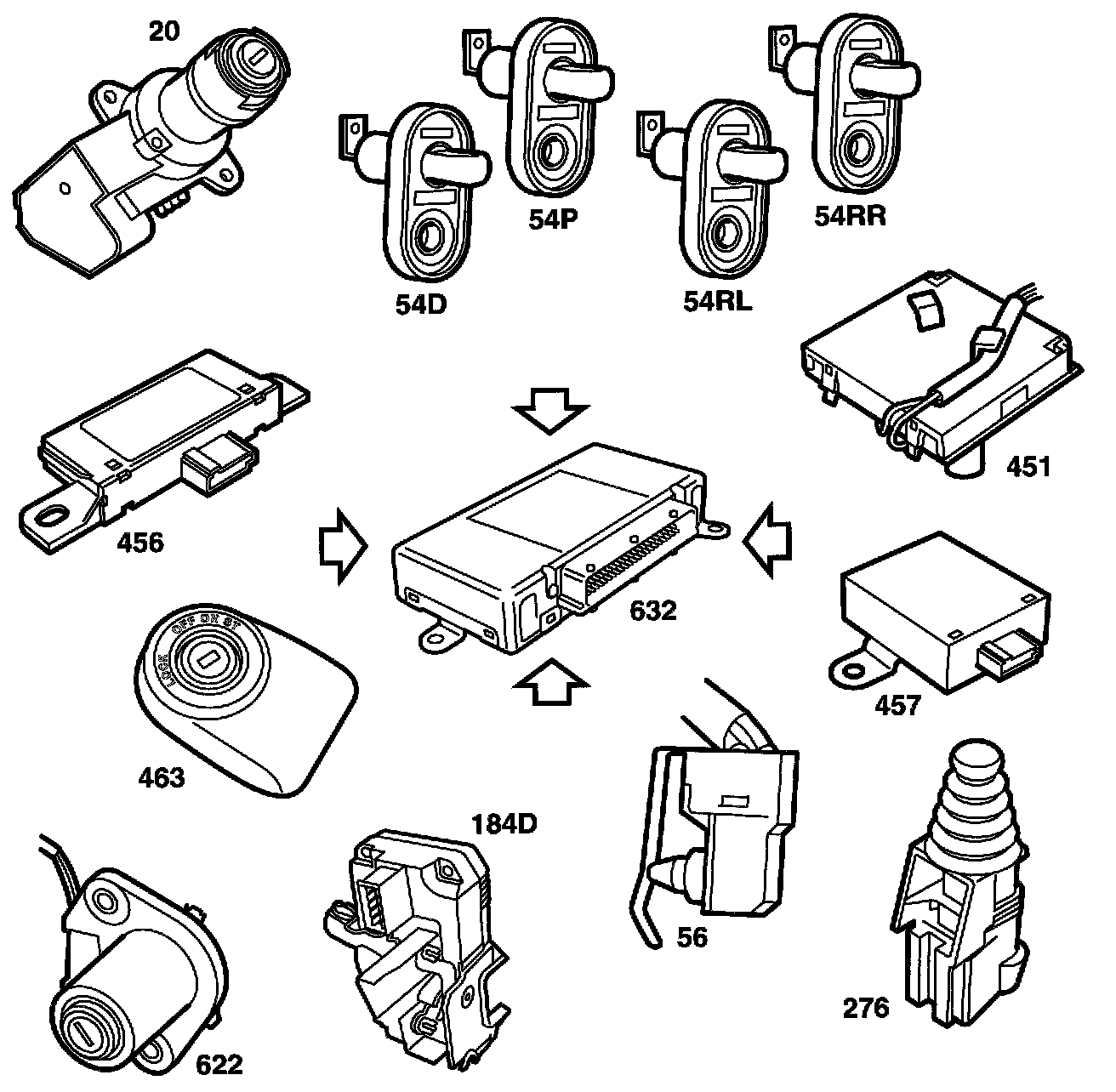

Control Module Inputs For the Anti-Theft Alarm

- Key contact in driver's door (184D)
- Door switch, driver's door (54D)
- Door switch, passenger door (54P)
- Door switch, rear left door (54RL)
- Door switch, rear right door (54RR)
- Bonnet switch (276)
- Luggage compartment switch (56)
- Microswitch in luggage compartment lock (622)
- Glass breakage sensor (451)
- Angle sensor (457)
- Receiver for remote control (456)
- Antenna unit, immobilizer (463)
- Ignition switch (20)
