Electronic Over-Revving Cut-Out


Part 1 Of 2:




Part 2 Of 2:

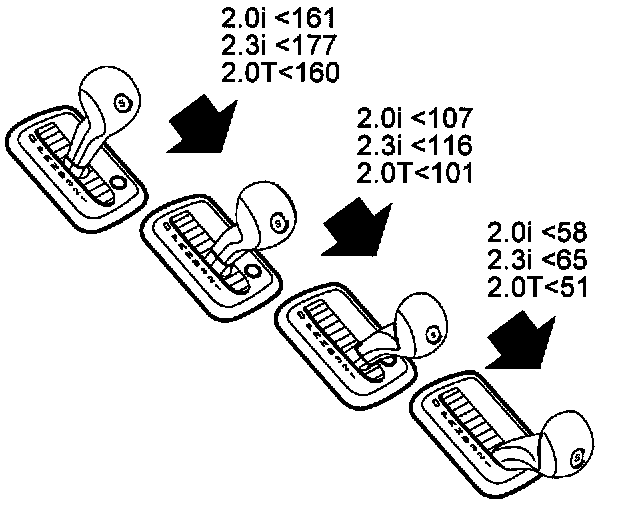

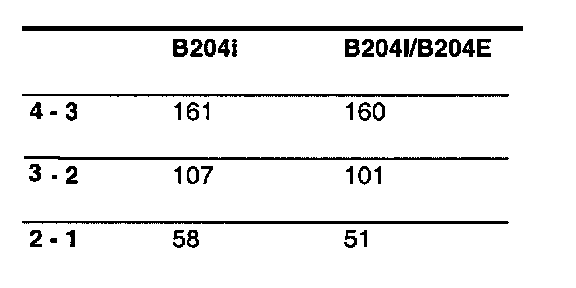

To prevent over-revving of the engine, the transmission is equipped with electronic over-revving cut-out. This means that down-shifting is not possible until the vehicle speed drops below the respective limit.
