Exhaust Resonator

To remove

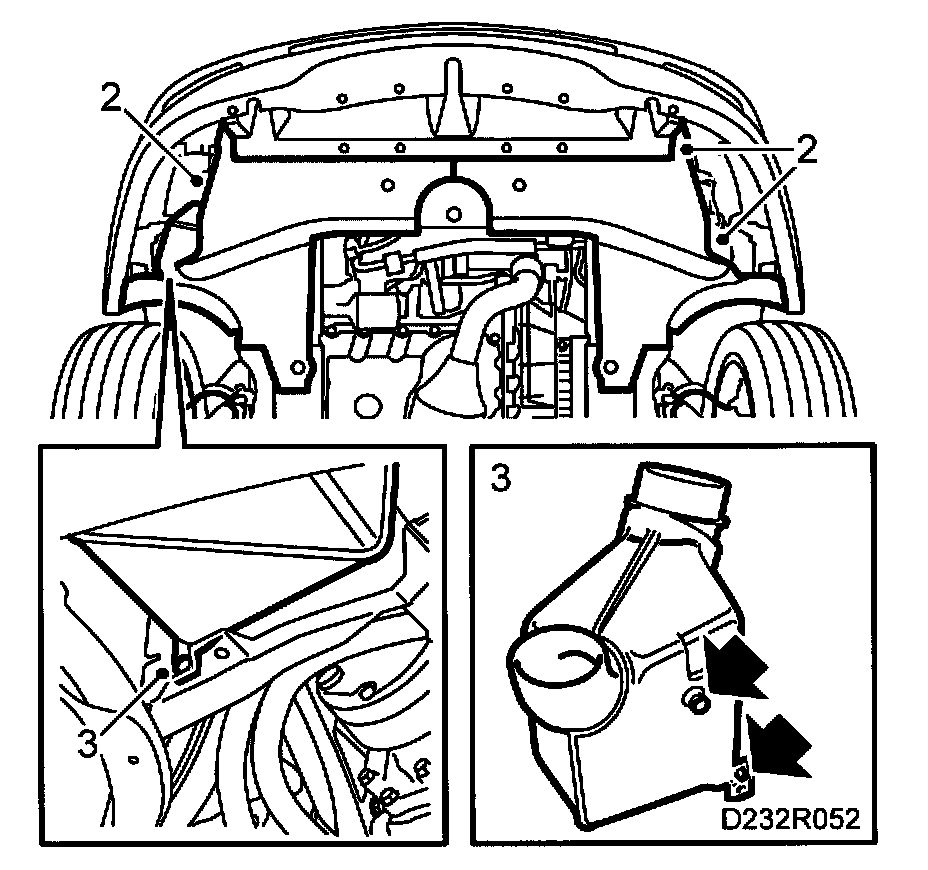

1 Position the car on a lift and raise it.
2 Remove the spoiler shields (right and left).
3 Undo the screw and unhook the resonator by pressing it up and slightly outwards.

To fit

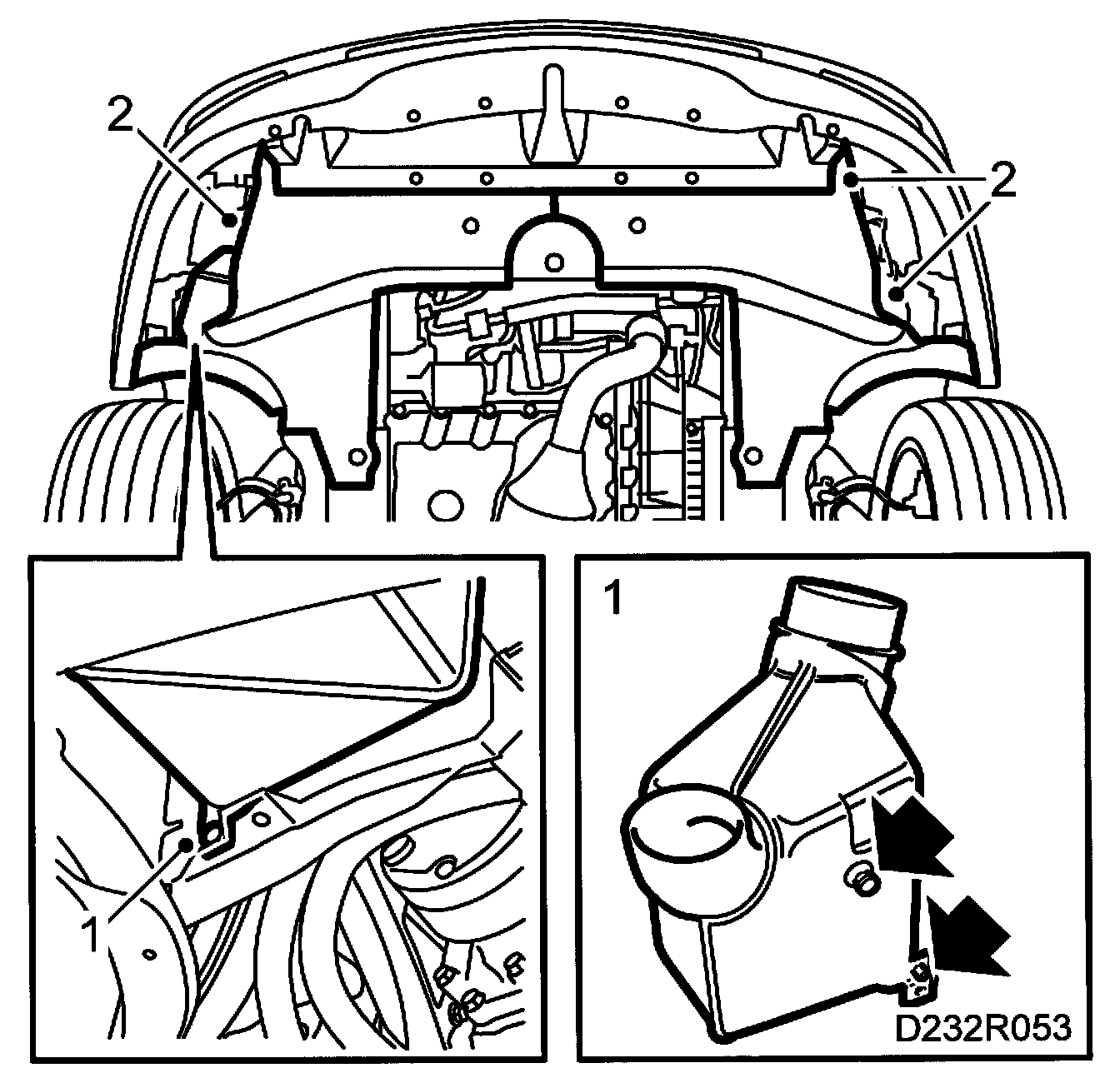

1 Hook the resonator in place and fit the screw.
2 Fit the spoiler shields.
3 Lower the car to the floor.
