Idle Speed Control (Linkage): Service and Repair

To remove







1 Remove the engine cover.
2 Unplug the idle speed control valve connector and remove the valve.
3 Remove the valve from the bracket and hoses.

To fit







1 Fit the valve to the bracket. Connect the hoses.
2 Plug in the valve connector.
3 Fit the engine cover.


IMPORTANT

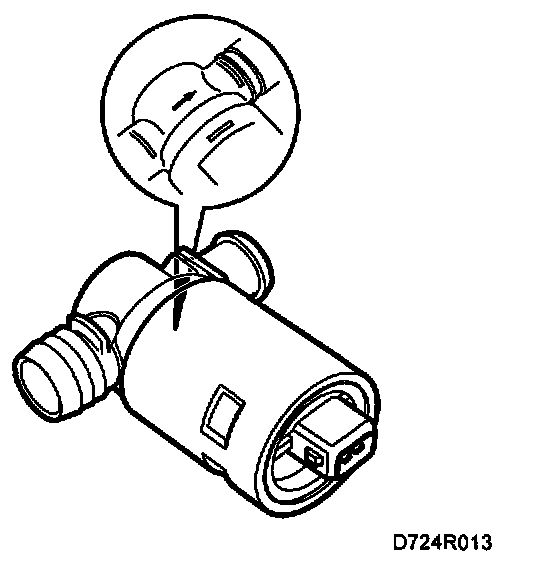

Note the arrow on the valve, it should be pointing away from the throttle body.
