Fitting A Service Port

Dismantling
1 Drive the car on to a lift and raise it.
2 Open the bonnet

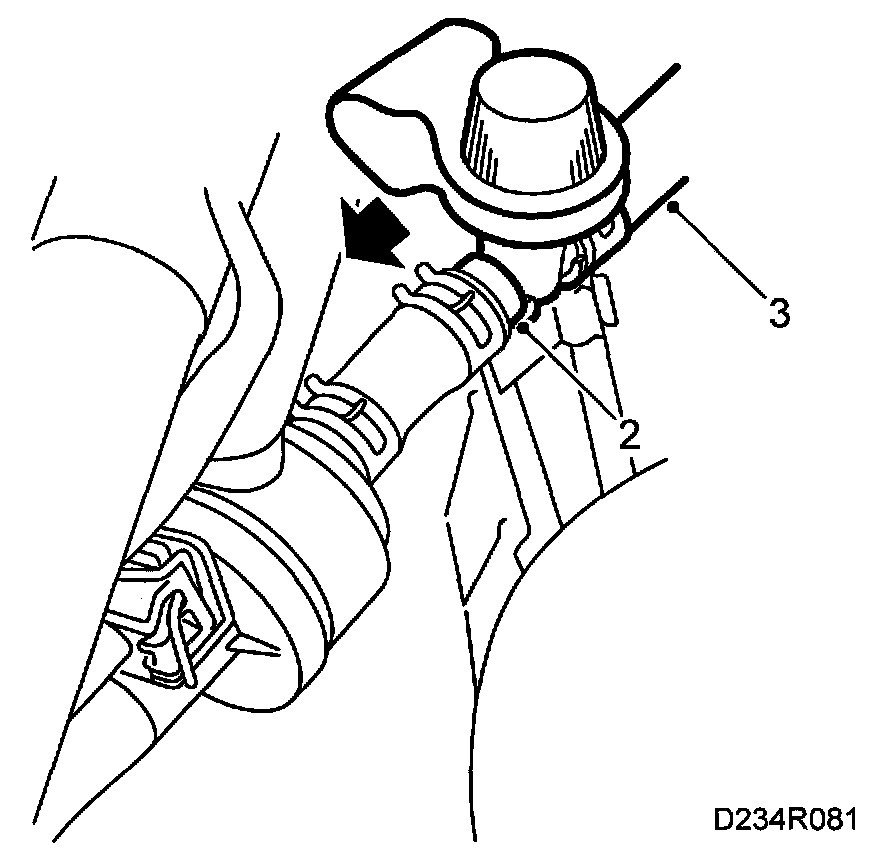

3 Detach the purge line from the rubber hose on the EVAP purge valve.
4 Detach the purge line from the securing clip.

To fit

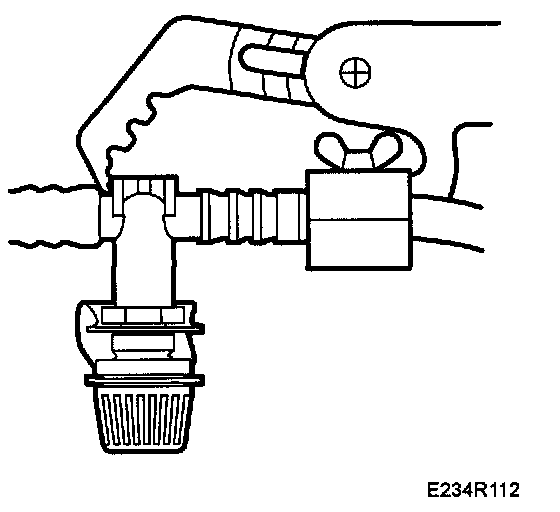

1 Press the purge line on to the service port using tool 83 94 546.
2 Connect the service port to the rubber hose on the EVAP purge valve.







3 Secure the purge line with the clip.
4 Pressurize the system and check for any leaks in the service port installation.
