Spark Plugs and Ignition Leads

To remove

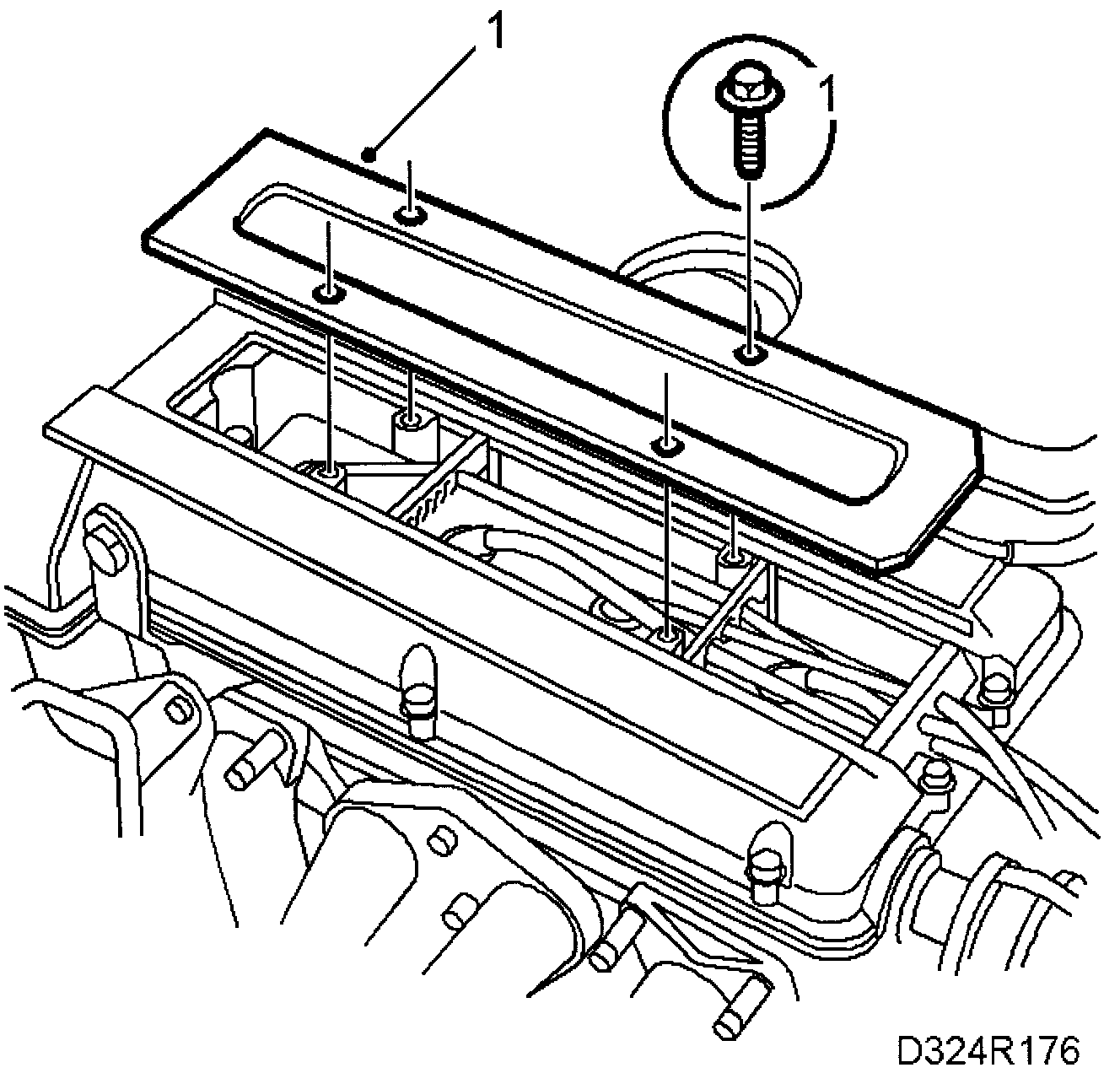

1 Remove the 4 screws that hold the cover over the spark plugs and the ignition leads on the cylinder block.

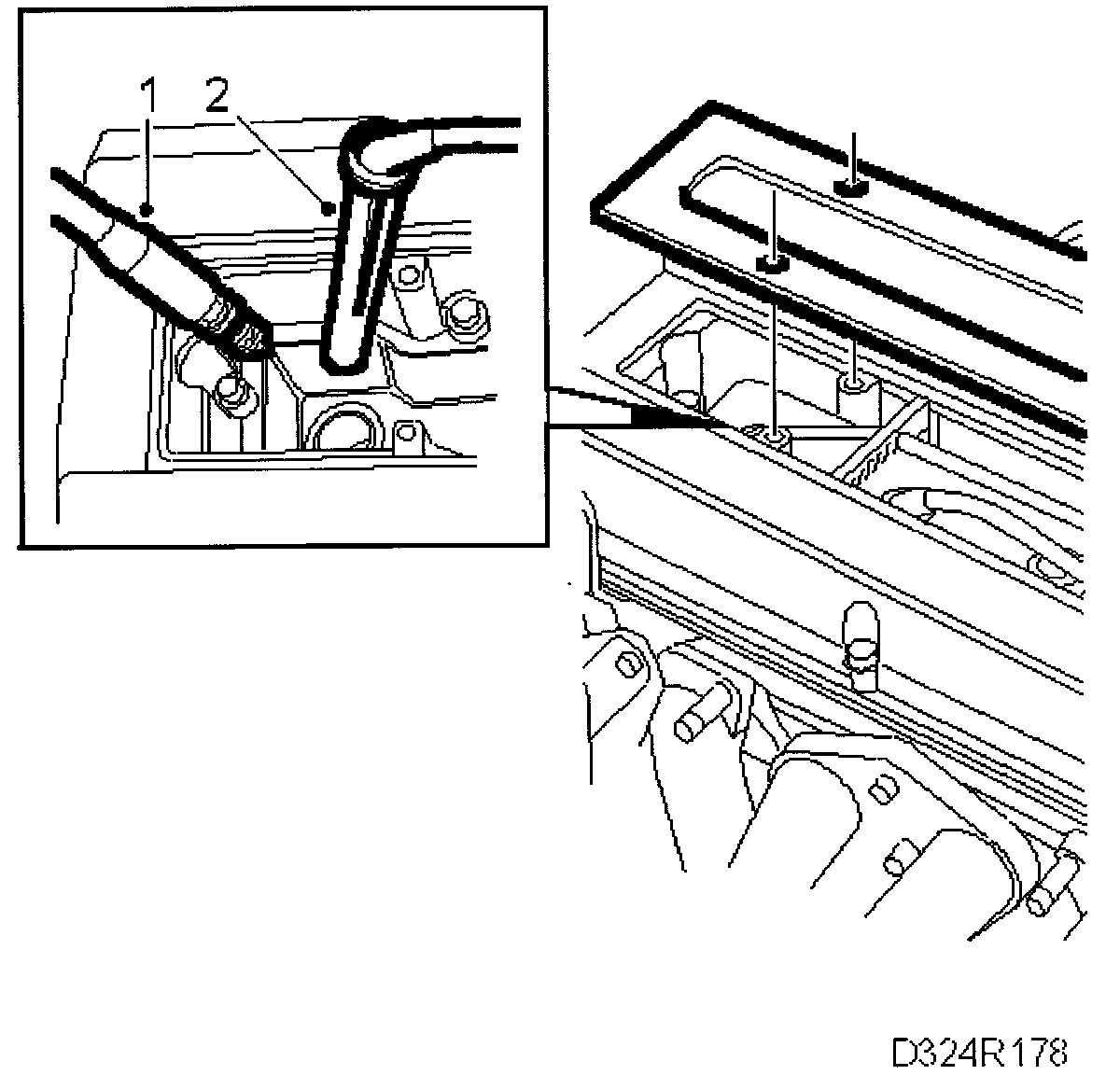

2 Remove the spark plug cap on the spark plugs.
3 Remove the spark plug alternatively the ignition lead.

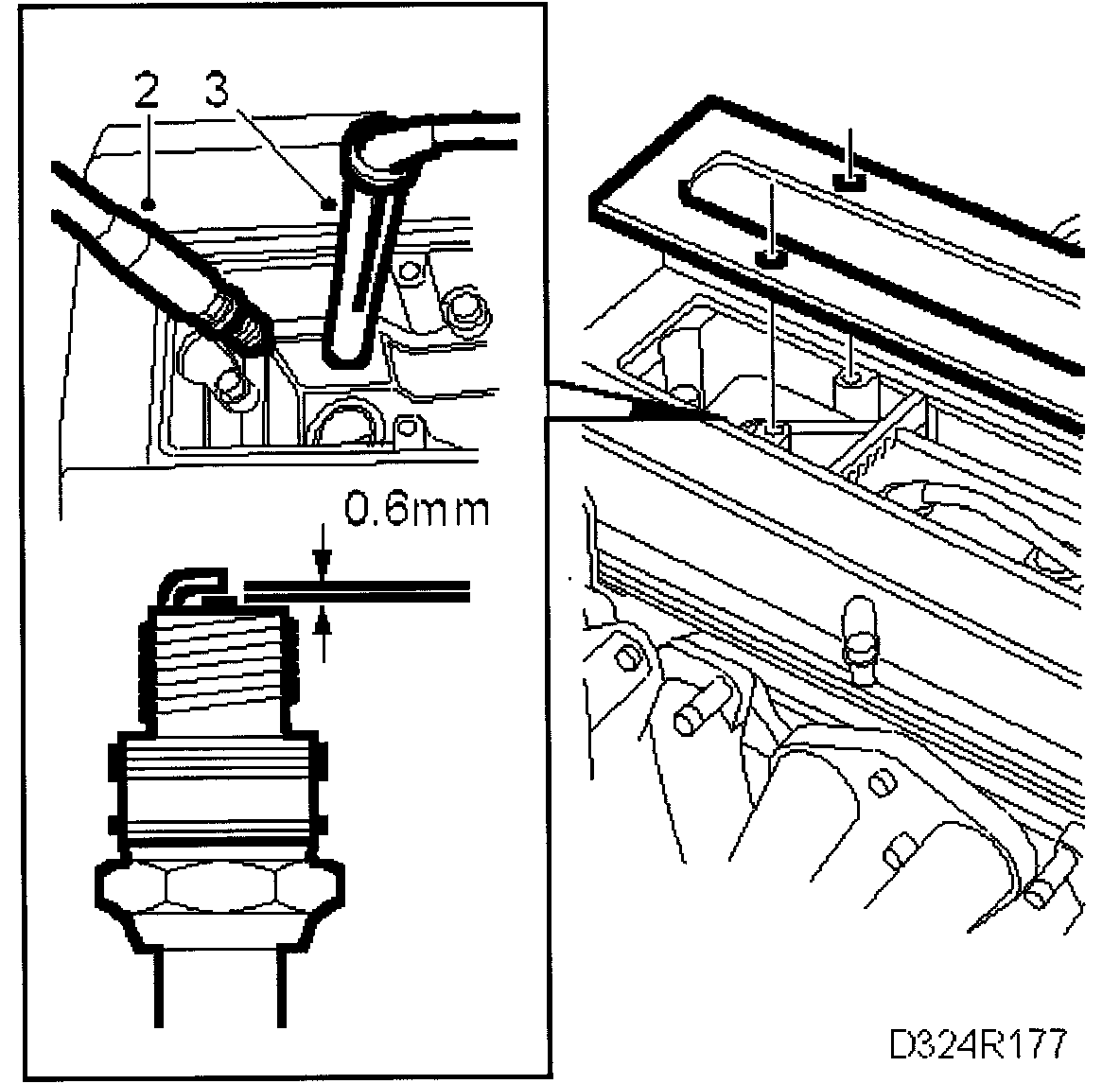

Check the spark plug gaps, adjust if necessary.

To fit







1 Fit the spark plug alternatively the ignition lead.
2 Fit the spark plug cap on the spark plugs.

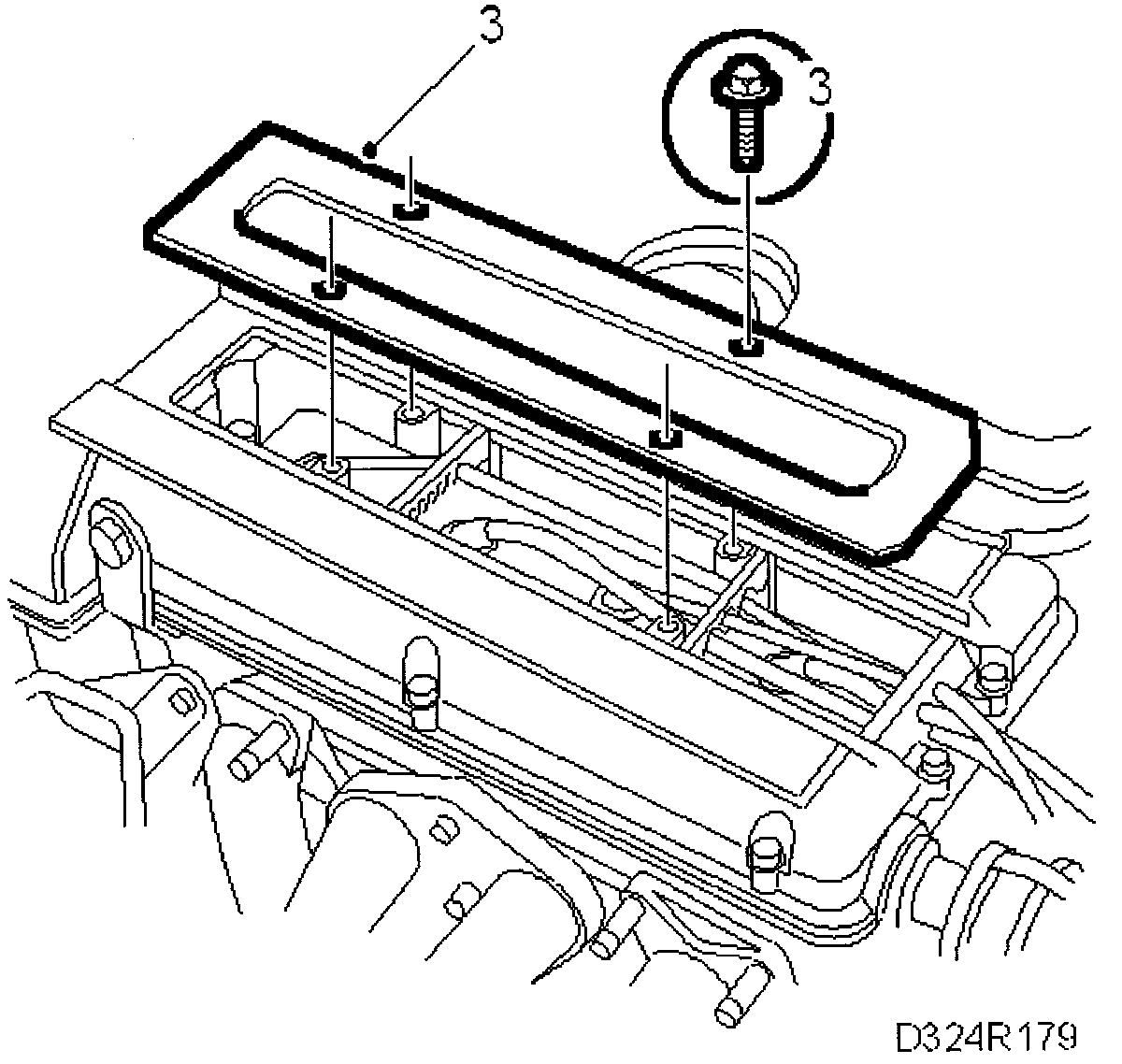

3 Fit the cover over the spark plugs and the ignition leads on the cylinder block, 4 screws.
