Vehicle Speed Signal From the ABS Control Module
Vehicle Speed Signal From The ABS Control Module:

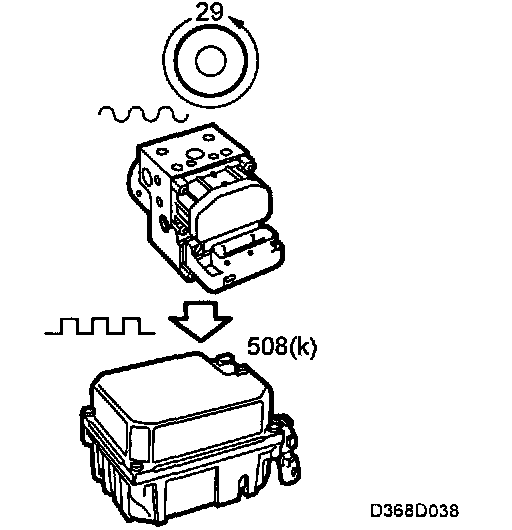

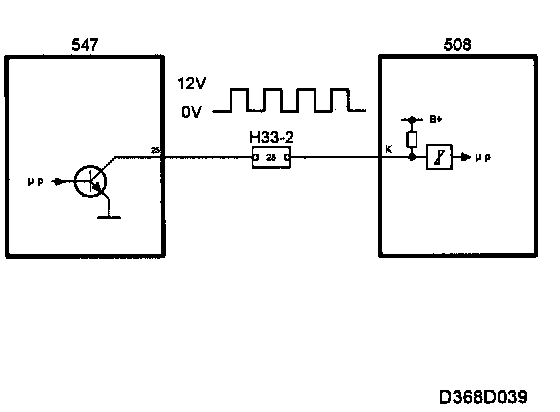

The control module receives a speed signal from the ABS control module. Speed signals from the LH front wheel are received on pin 10 (K).
