Bonnet Lock

To Remove

Bonnet Lock:

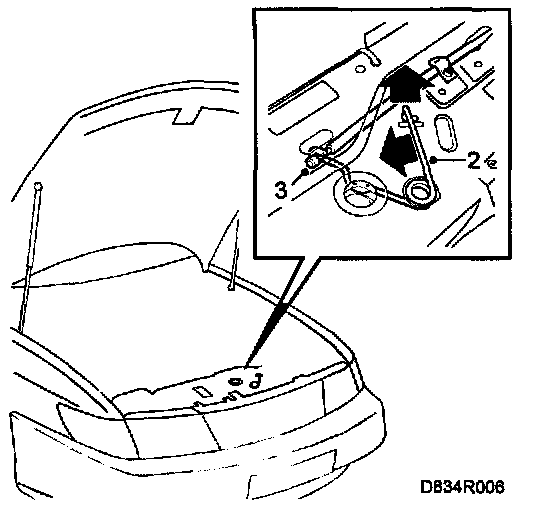

1 Open the bonnet.
2 Remove the bonnet lock spring from its pretensioned position.
3 Unhook the bonnet-release cable from the bonnet lock spring.
4 Remove the bonnet lock spring by removing it from the front member.

To Fit
Fit in reverse order.

NOTE: Grease the bonnet lock spring with according to service instructions.
