Oxygen Sensor

Dismantling

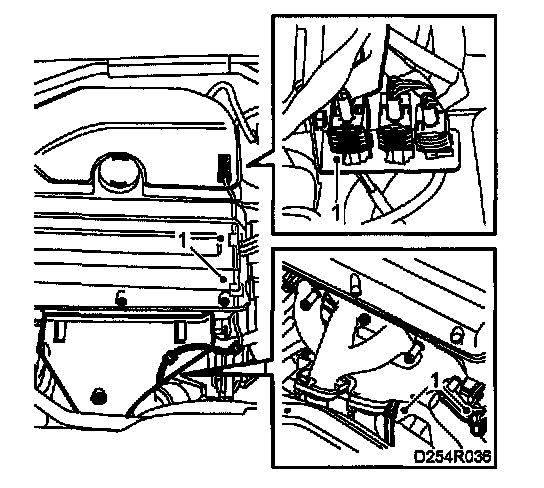

1 Unplug the oxygen sensors leads, undo the cable clamps and clip. Raise the car.

IMPORTANT
The leads must not be twisted. The oxygen sensor is highly sensitive to knocks and blows and must be handled with care.

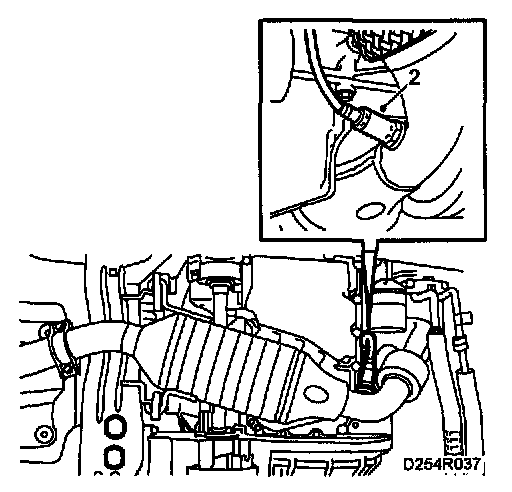

2 Remove the oxygen sensor.

To fit







1 Coat the oxygen sensors threads with Molycote 1000 (30 20 971) to prevent binding.

IMPORTANT
The oxygen sensor is sensitive to knocks and blows and must be handled with care. It is important to ensure that the connection between it and the nipple is gastight.
The oxygen sensor's lead must not be stretched between engine and exhaust pipe. Secure the cable to the clips so that a loop is formed just before the sensor.

2 Fit the oxygen sensor.

Tightening torque: 55 Nm (41 lbf ft)







3 Lower the car to the floor, plug in the leads and fit the cable clamps and clip.
