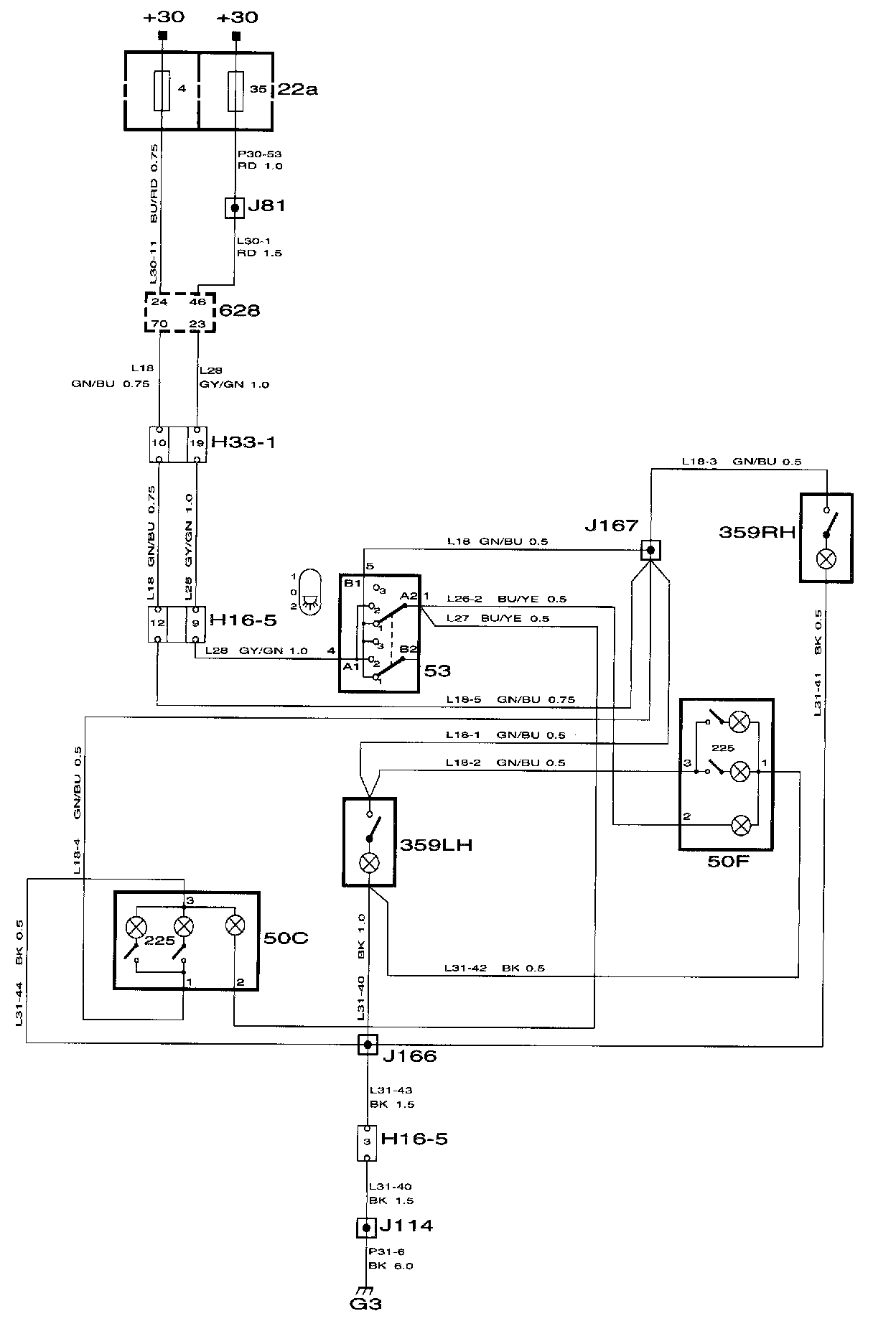

Reading Lamps and Interior Lighting

Reading Lamps and Interior Lighting

Components
No. Name and location
22a Main fuse board, dashboard; on side of dashboard by driver's door
50C Lamp, centre roof lighting; in centre of roof
50F Lamp, front roof lighting; in roof console above windscreen
53 Switch, interior lighting; in front roof console
225LH Reading lamp, rear, left; in left-hand B-pillar
225RH Reading lamp, rear, right; in right-hand B-pillar
359LH Lamp, vanity mirror illumination, left
3D/5D: in roof above sun visor
CONV: in sun visor
359RH Lamp, vanity mirror illumination, right
3D/5D: in roof above sun visor
CONV: in sun visor
628 Control module, DICE
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard

16-pin connector
No. Location
H16-5 In luggage compartment behind left-hand wheel housing

33-pin connector
No. Location
H33-1 Grey connector on bracket below left-hand A-pillar

Crimped connectors
No. Location
J81 LHD: Approx 120 mm from DICE control module branching point towards brake light switch
RHD: Approx 30 mm from light switch branching point towards MIU
J114 3D/5D: Approx 80 mm from grounding point G3 branching point towards compartment CONV: Approx 50 mm from right-hand rear light cluster branching point towards compartment
J166 Approx 430 mm from centre dome lamp towards front dome lamp
J167 Approx 530 mm from centre dome lamp towards front dome lamp

Grounding points
No. Location
G3 Grounding point luggage compartment; on the floor under the left-hand rear light cluster
