Windscreen Washer Nozzles

Windscreen Washer Nozzles

Removal

Windscreen Washer Nozzles:

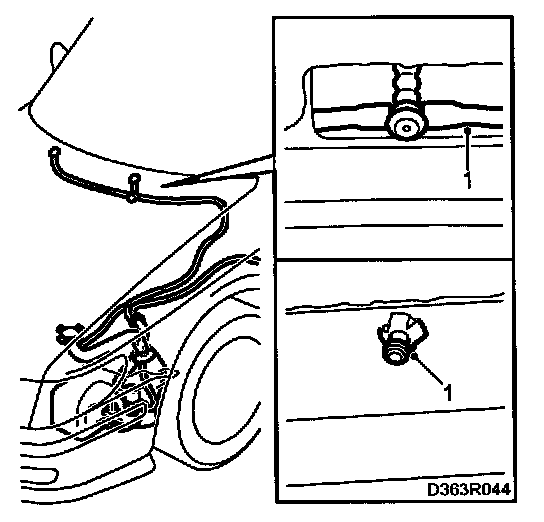

1 Disconnect the hose from the nozzle.

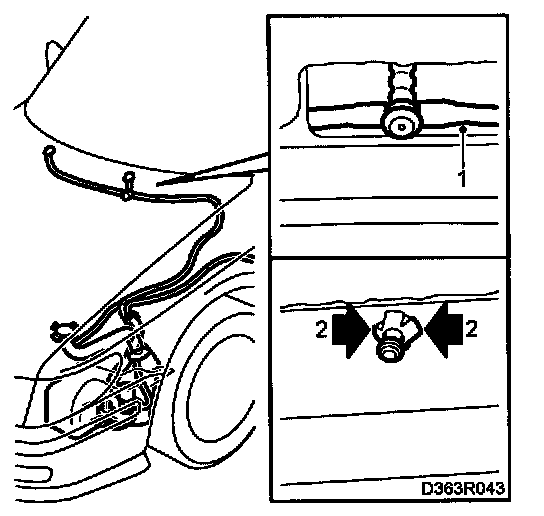

2 Remove the nozzle by pressing in the lock tabs.

Refitting







1 Press the new nozzle into place and connect the hose.
2 Close the bonnet. Adjust the nozzle jets.


Adjusting The Windscreen Washer Nozzles

Adjustment

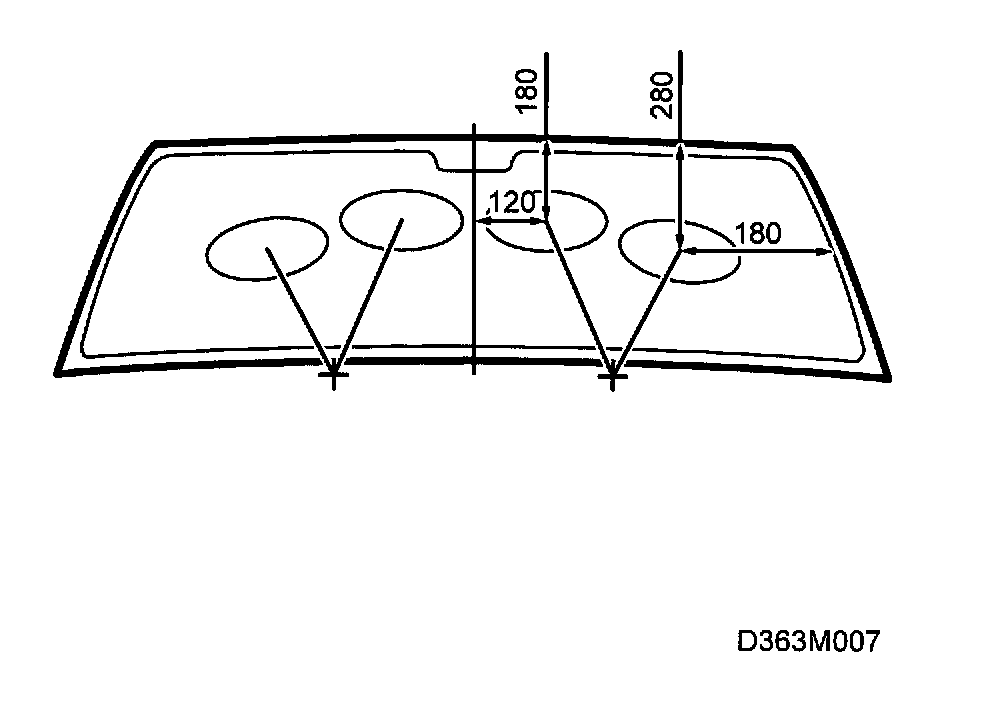

1 Adjust the jets with a needle, in accordance with the strike pattern.
