Removal and Replacement

Washer Fluid Reservoir

Removal







1. Empty the reservoir.

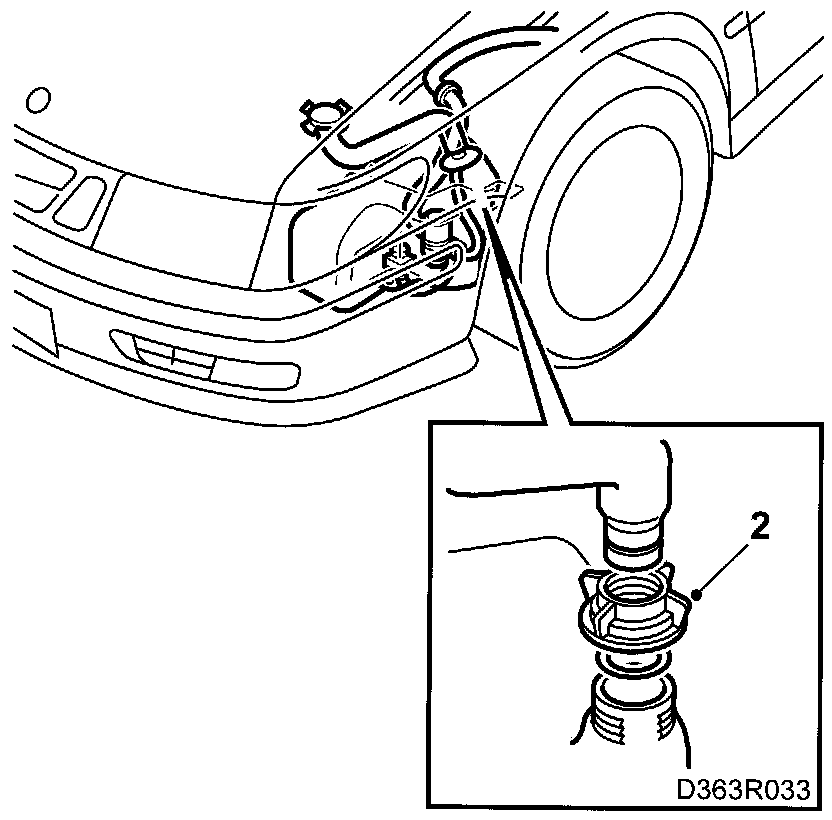

2. Remove the filler pipe and the plastic nut.
3. Raise the car and remove the wing liner at the front (3 screws).

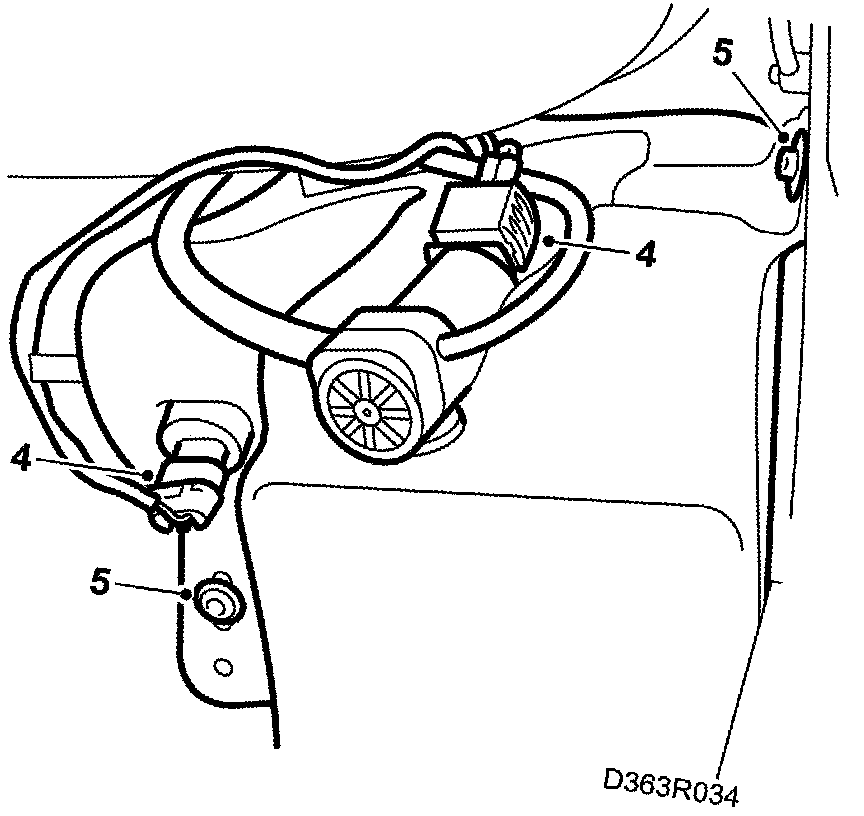

4. Remove the pump and the level sensor from the reservoir and let them hang by their respective hoses and leads.







5. Remove the 2 retaining screws from the reservoir and pull the washer fluid reservoir downwards.

Refitting

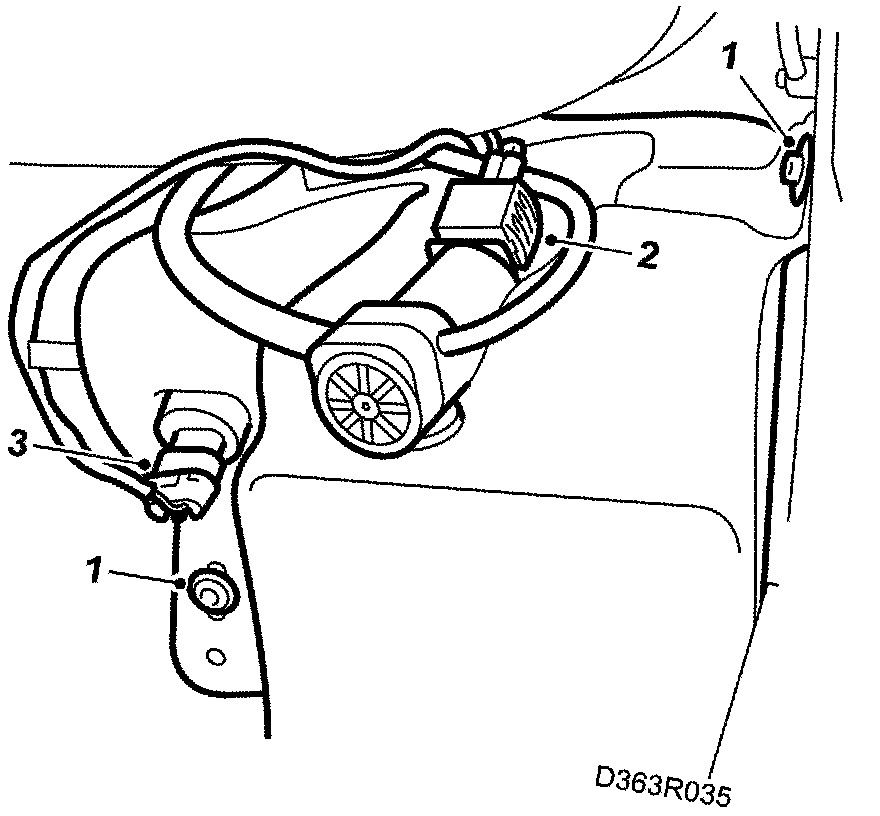

1. Place the reservoir in its correct position and refit the retaining screws.
2. Refit the pump.
3. Refit the level sensor with its float pointing downwards.
4. Refit the wing liner at the front and lower the car.
5. Refit the plastic nut and the filler pipe.







6. Fill the reservoir with washer fluid.
