Windshield Washer Pump: Service and Repair

Removal







1 Drain the washer fluid reservoir.
2 Raise the car and remove the wing liner at the front (3 screws).

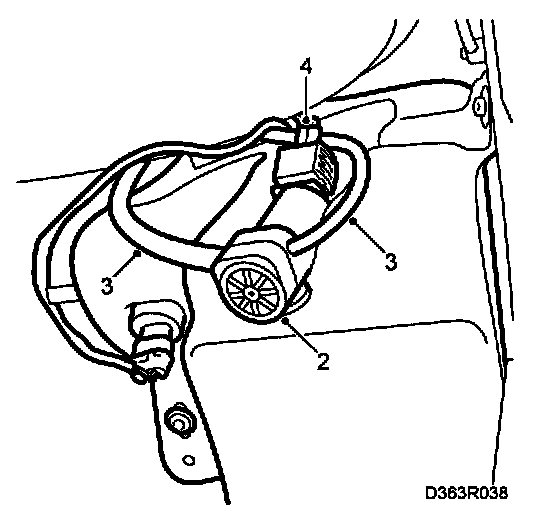

3 Detach the hoses at the pump and pull the pump up to remove it from the washer fluid reservoir.
4 Unplug the connector.

Refitting

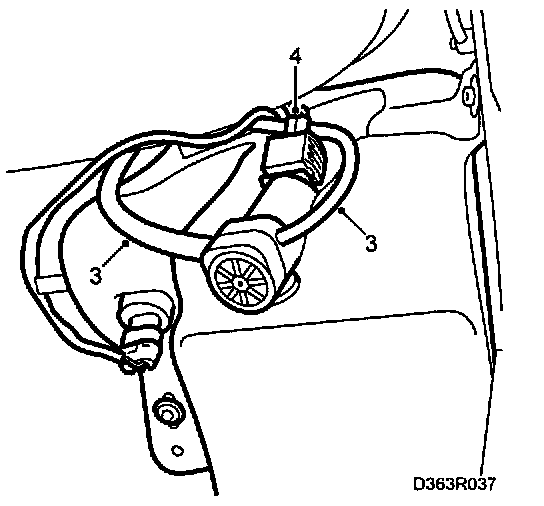

1 Plug in the connector.
2 Press the pump into the washer fluid reservoir.
3 Reconnect the hoses.
4 Refit the wing liner (3 screws).
5 Lower the car.
6 Fill the washer fluid reservoir.
