Washer Hose, Rear Window

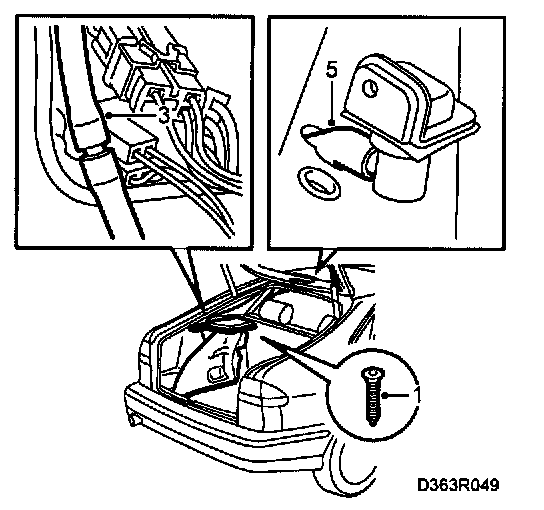

Removal
1 Remove the screws that hold the loudspeaker grille in place.







2 Remove the trim on the left-hand side of the boot and the C pillar.
3 Detach the soft hose from the hard hose
4 Remove the high-level brake light.
5 Remove the nozzle from the washer hose by waggling the hose and pulling it upwards.

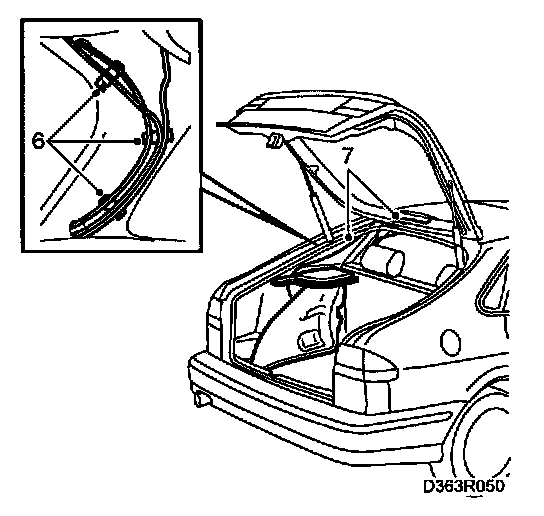

6 Remove the hose from the clips in the C pillar.







7 Detach the rubber bushing from the boot lid and remove the hose.

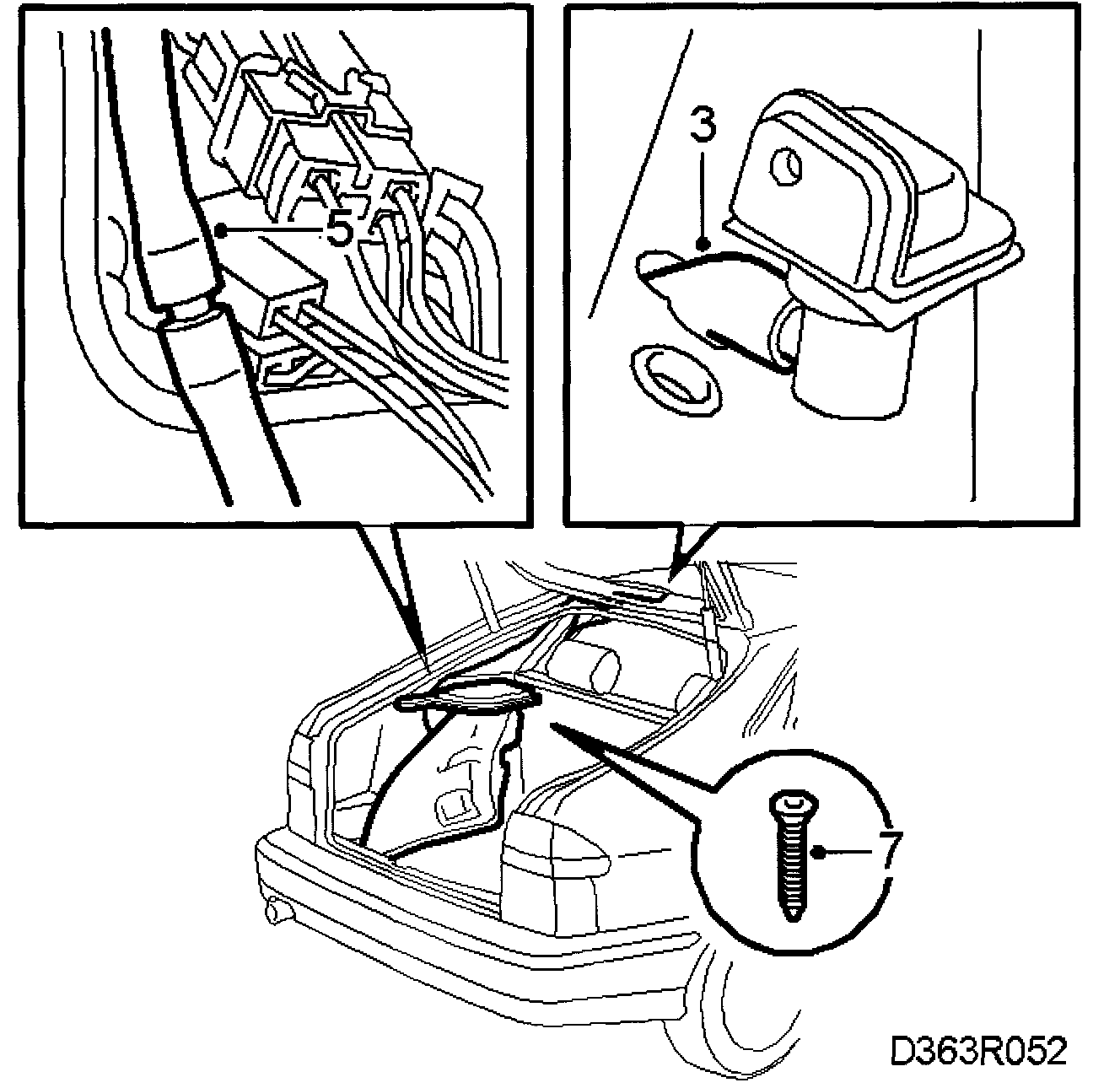

Refitting







1 Thread the hose through the rubber bushing in the boot lid and refit the bushing.
2 Refit the hose on to the clips in the C pillar.
3 Refit and press the nozzle into place on the washer hose.







4 Fit the high-level brake light
5 Reconnect the soft hose on to the hard hose.
6 Refit the trim on to the left-hand side of the boot and the C pillar.
7 Refit the screws that hold the loudspeaker grille in place.
