Rear Window Wiper

Removal

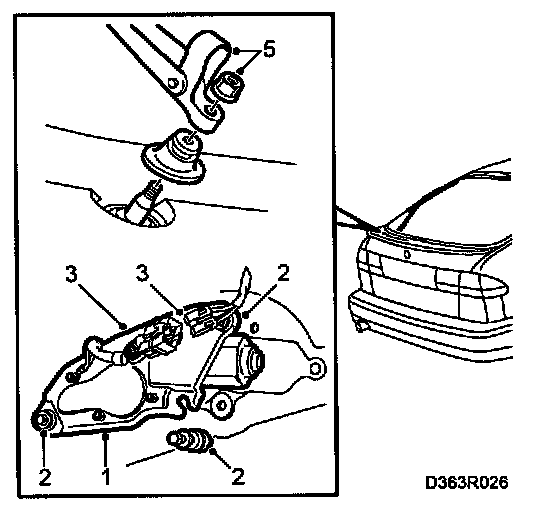

1 Remove the wiper arm by raising the protective cover and removing the nut.
2 Open the boot and remove the lid trim.
3 Disconnect the 4-pole connector.
4 Remove the wiper motor retaining screws.
5 Remove the motor.


IMPORTANT
When changing the rear window wiper motor, move the rubber dampers from the old motor to the new one.


Refitting







1 Lift the motor into position.
2 Refit the wiper motor retaining screws.
3 Reconnect the 4-pole connector.
4 Refit the lid trim.
5 Fit the wiper arm and close the protective cover.
