Level Sensor

Removal







1 Drain the washer fluid reservoir.
2 Raise the car and remove the wing liner at the front (3 screws).

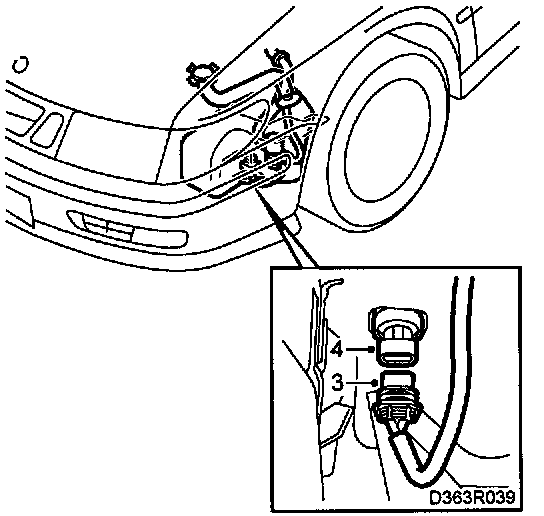

3 Unplug the connector.
4 Pull away the level sensor to remove it from the washer fluid reservoir.

Refitting

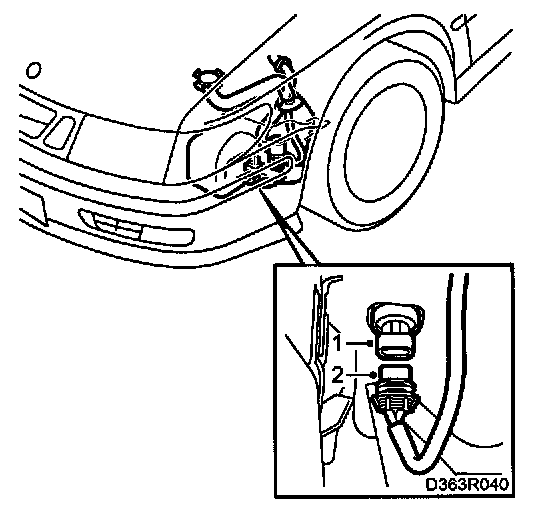

1 Press the level sensor into the washer fluid reservoir with the float hanging down.
2 Plug in the connector.
3 Refit the wing liner (3 screws).
4 Lower the car.
5 Fill the washer fluid reservoir.
