Headlamp Washer Hose: Service and Repair

Removal
1 Remove the direction indicators and headlamps

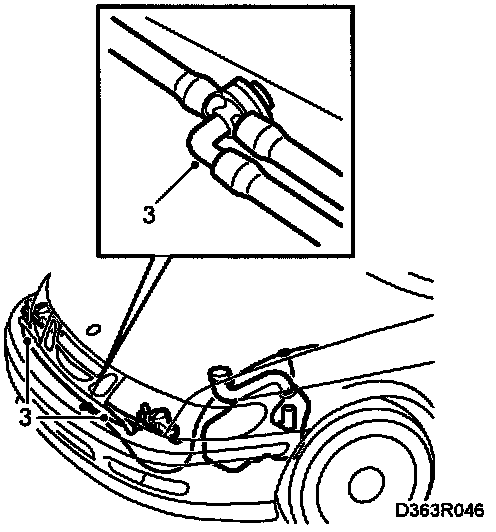

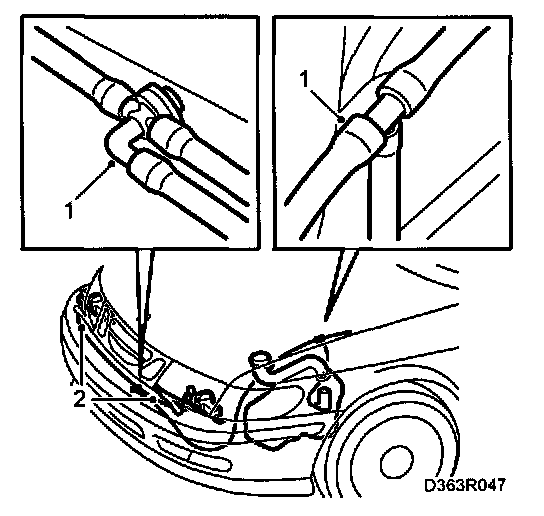

2 Remove the hose from the T-connection.

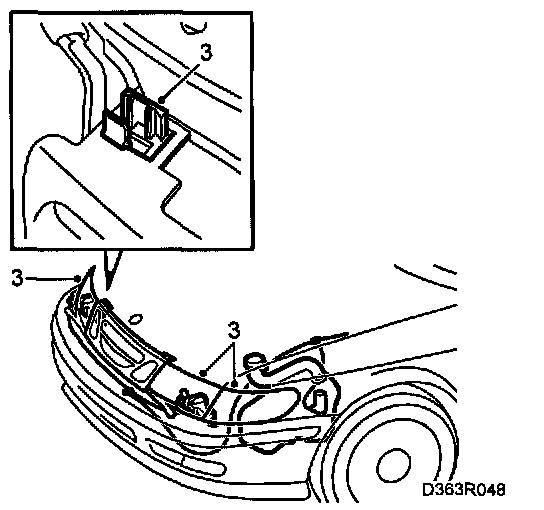

3 Remove the hose (2 clips).


Refitting

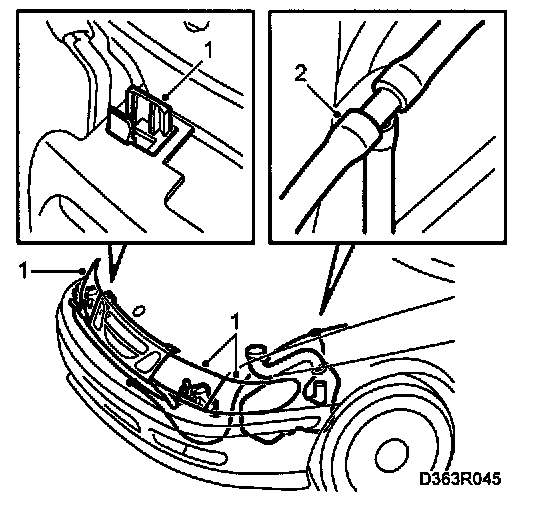

1 Refit the hose in the same position as it was previously (2 clips).
2 Connect the hose to the nozzles.
3 Fit the direction indicators and headlamps
