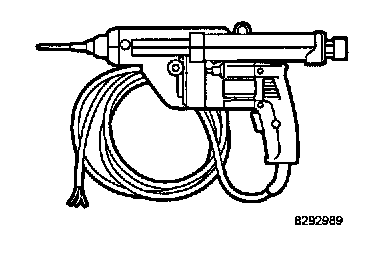

Adhesive Gun, Glue-Mounted Glass









(16) 82 92 971 Adhesive gun 220 volt
(16) 82 92 989 Adhesive gun 110 volt

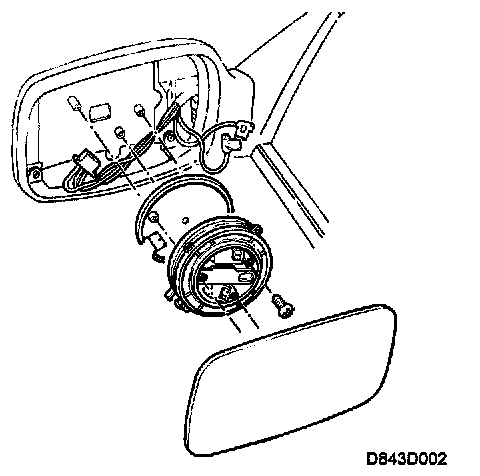

Door Mirrors:






The door mirrors are controlled electrically and are operated by a four-way switch as well as a switch by the drive's door. The switch is located at the bottom of the inner door mirror.
The door mirrors are provided with electrical heating that is switched on together with the switch for the electrically heated rear window.
The interior rear-view mirror is mounted in the roof. The glare can be eliminated by pressing a button on the underside of the mirror.
