Electric Window Lifts Not Functioning




Electric Window Lifts Not Functioning:











Fault Symptoms
Electric window lifts not functioning.

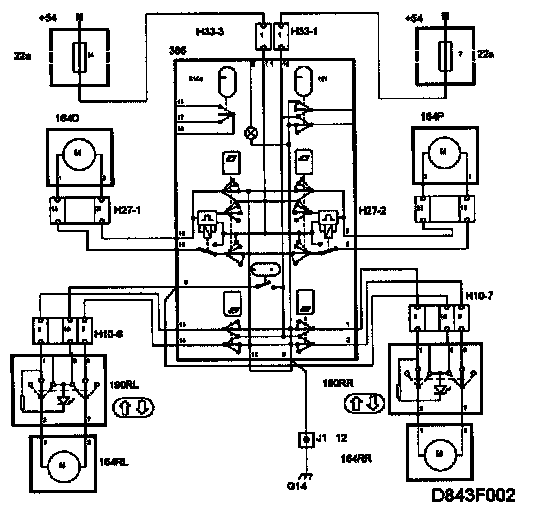

Diagnostic Help

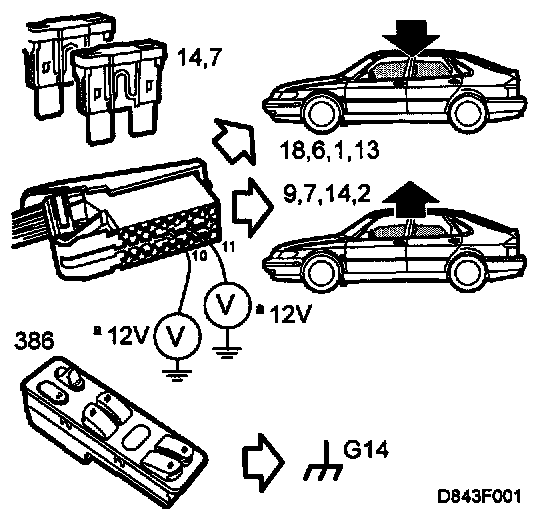

1 Check fuses 14 and 7 as well as it there is power supplied to the same.
2 Check that power reaches pin 10 and 11 on switch 386.
3 Check that there is power to pins 18, 6,1 and 13 when the windows are lowered.
4 Check that there is power to pins 19, 7,14 and 2 when the windows are raised. The voltage should have reversed polarity compared to when the windows are lowered.
5 If the electric window lifts in the rear doors cannot be operated from the switches in respective rear door, check that the voltage is being fed out via pin 9 ON/OFF on the switch.
6 Check the rear door switch function by measuring on their connections.
7 Check connector, wiring and ground connections.
