Electric Door Mirrors Not Functioning




Electric Door Mirrors Not Functioning:











Fault Symptoms
Electric door mirrors not functioning

Diagnostic Help

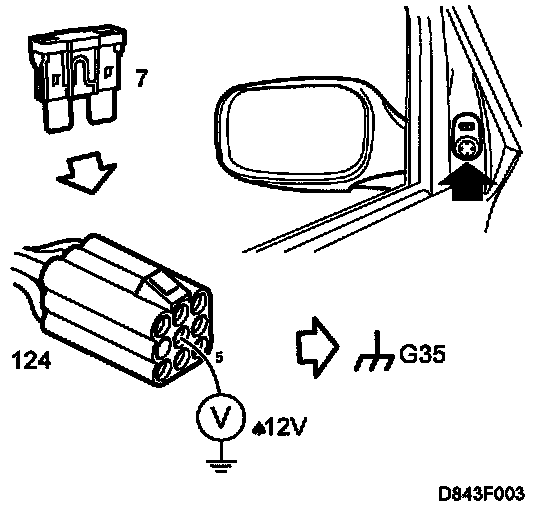

1 Check fuse 7 as well as it there is power to the fuses.

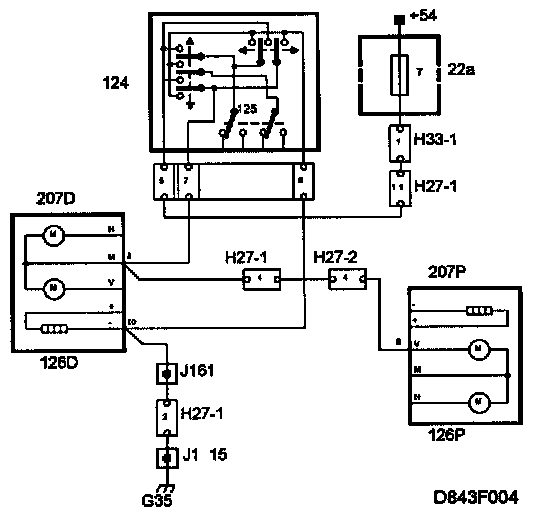

2 Check the voltage in pin 5 on switch 124.
3 Check that the power goes out to the motors 126D and 126P by activating the switch.
4 Check connector wiring and ground connection.
