Rear Window



Rear Window

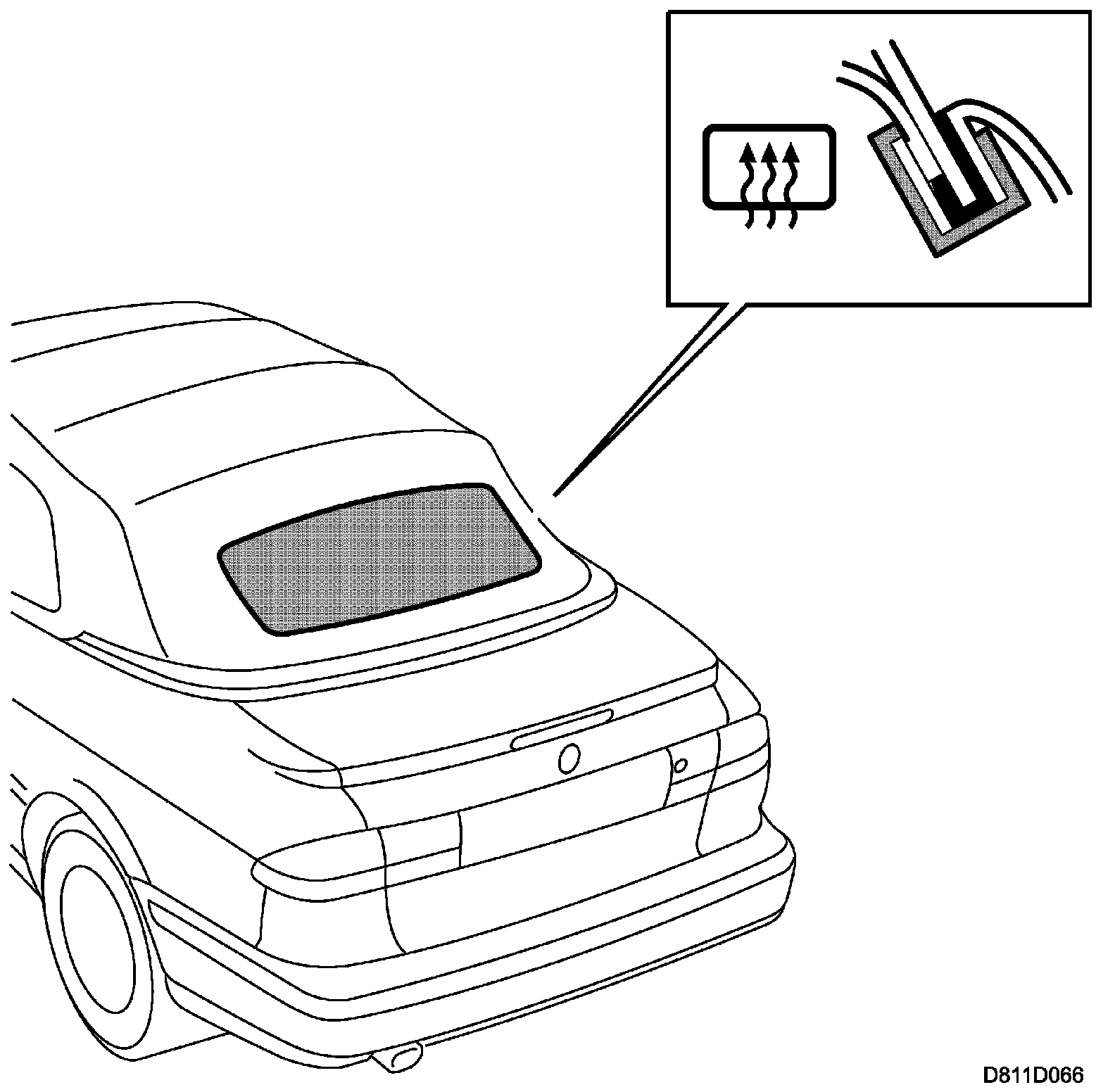

The electrically heated rear window is mounted in a frame that is fastened with clips in both the headlining and the outer roof. On the sides, there is a linkage which controls the window during raising and lowering of the soft top, as well as assures the end position of the window when the soft top has been opened or closed.
