Campaign - Replacement of A/T Shift Lock Solenoid: Overview
SI No. 432-2044PI No.
Date October 1998
Distr.
9-3

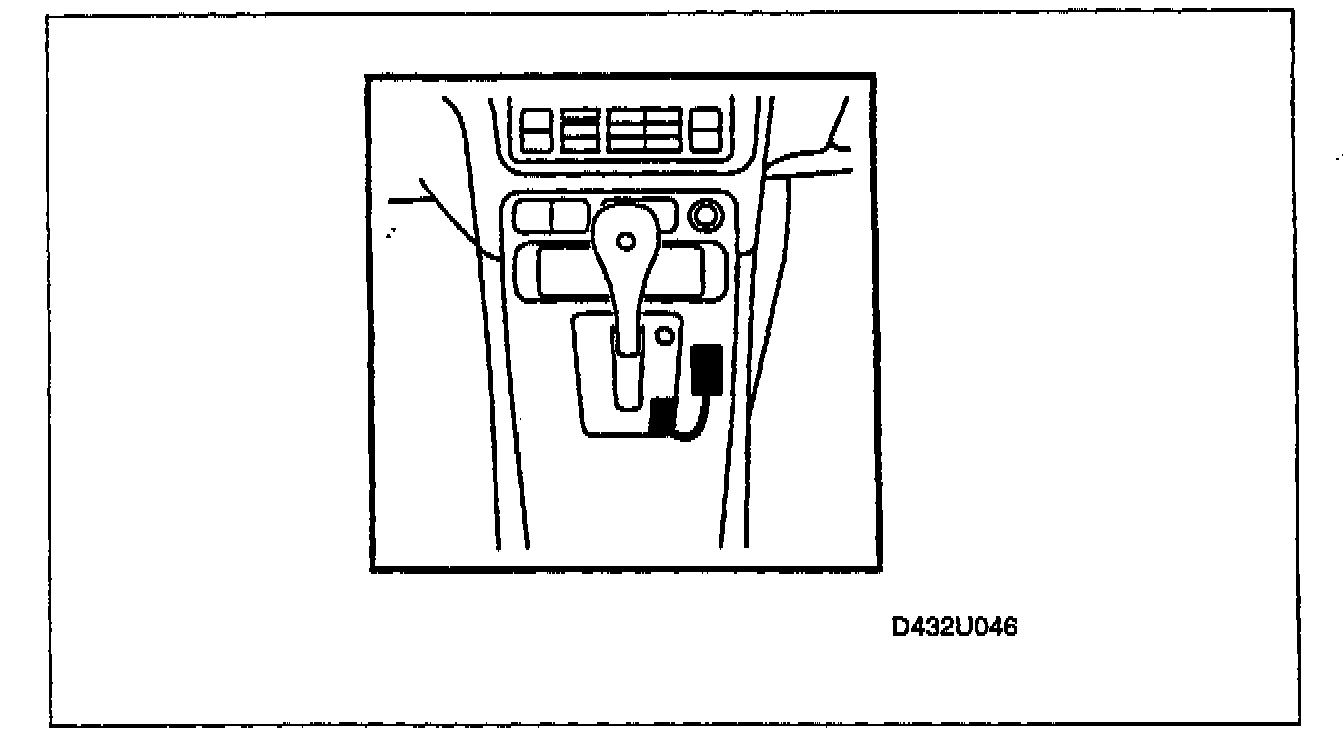

Replacement of shift lock solenoid
Background
Due to contamination within the shift lock solenoid, the shifter may get stuck in Park.
A new, improved shift lock solenoid should be installed on all 9-3 models in your dealership's new car inventory within the affected VIN Serial No. Range.
This procedure will be claimed using the campaign processing coding for tracking purposes.
Cars affected
Saab 9-33- and 5-door models within VIN Serial No.
Ranges: X2000001-X2023504
Saab 9-3 Convertible within VIN Serial No. Ranges:
X7000001-X7020970
Material:
Shift lock solenoid: 51 62 060
Warranty/Time Information
Submit warranty claims using the following information:
FAILED OBJECT: 10473
FAULT/REASON: 62
LOCATION: 0
WARRANTY TYPE: 02
REPAIR/ACTION: 01
LABOR OPERATION: 10473 1.4 HOURS
PLEASE ADD THE FOLLOWING INFORMATION TO YOUR DCS TABLES:
FAILED OBJECT TABLE
FAILED OBJECT: 10473
DESCRIPTION: SHIFTLOCK SOLENOID REPL
MODELS: D E
OPERATION NUMBER TABLE:
OPERATION NUMBER: 10473
DESCRIPTION: SHIFTLOCK SOLENOID REPL.
TRANSMISSION TYPE: A
ENGINE TYPE: 9
DIAG CODE REQD: 0
MODELS: M94- 900
HOURS: 1.4
BEGIN YR.: 99
END YR: 99
