System Overview

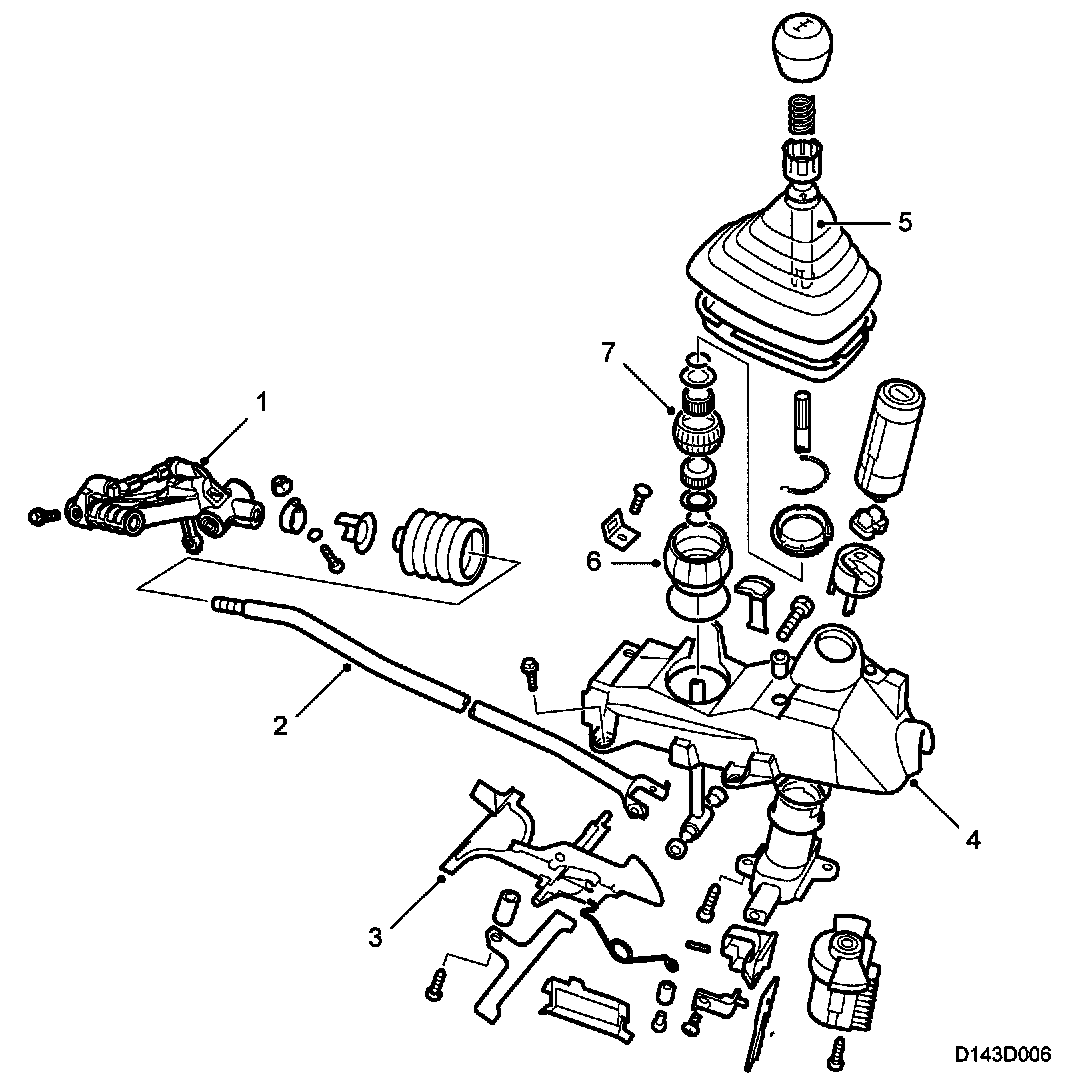

Selector Mechanism





1. Gear linkage
2. Selector rod
3. Lock plate
4. Gear lever housing
5. Gear lever
6. Ball socket
7. Gear lever ball

Transfer of force from the gear lever to the gearbox is via a linkage which transmits both torsional and shear forces with the least possible friction to achieve low shifting force.

The car is equipped with a gear lever lock which means that the gear lever is locked in the reverse position when the key is removed from the ignition switch.
