Selector Lever

To dismantle
The selector lever must have been removed first.

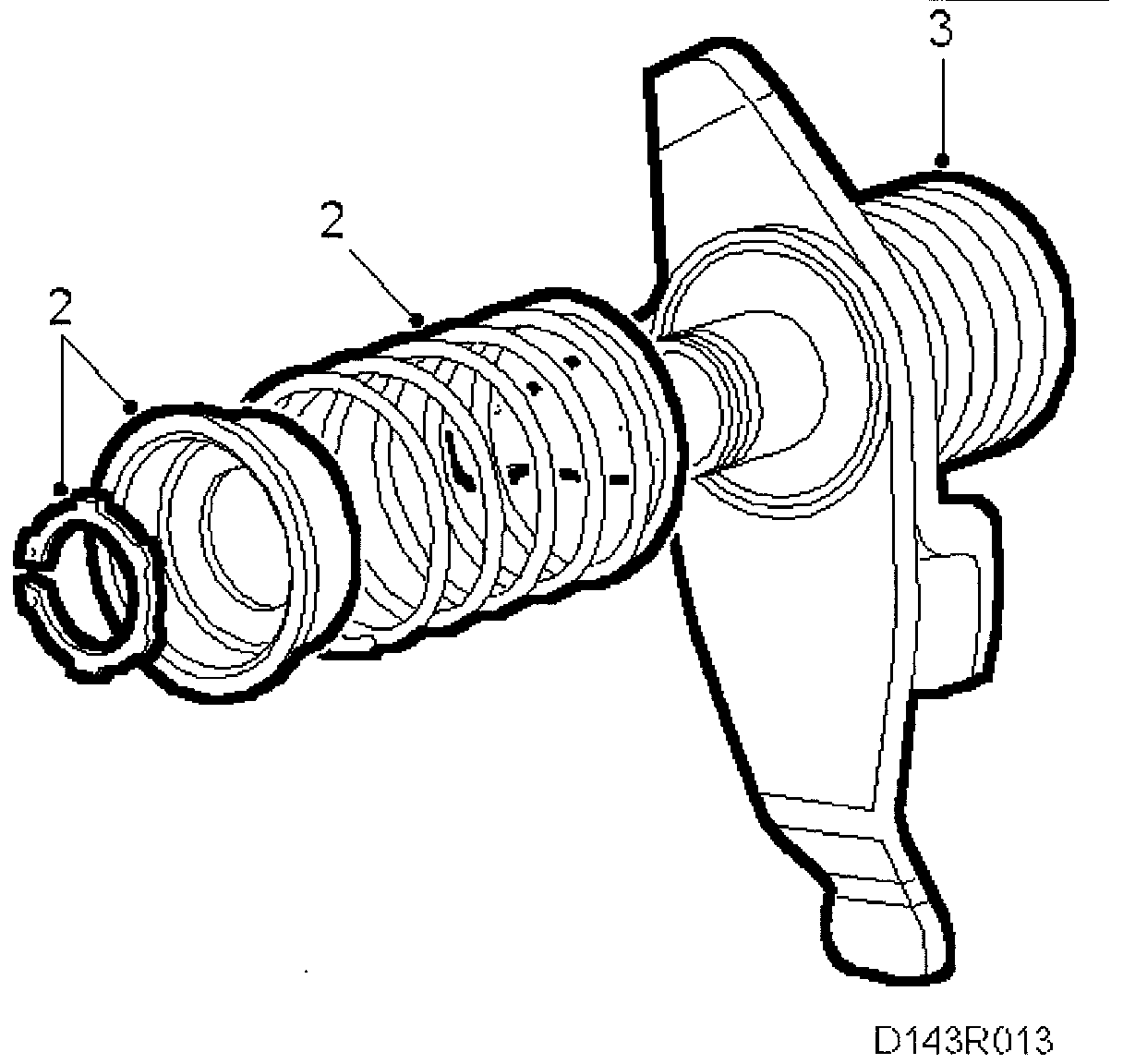

1. Push down one of the springs and remove the circlip. Lift off and retain the spring and sleeve.
2. Remove the other spring and sleeve in the same way.

To assemble

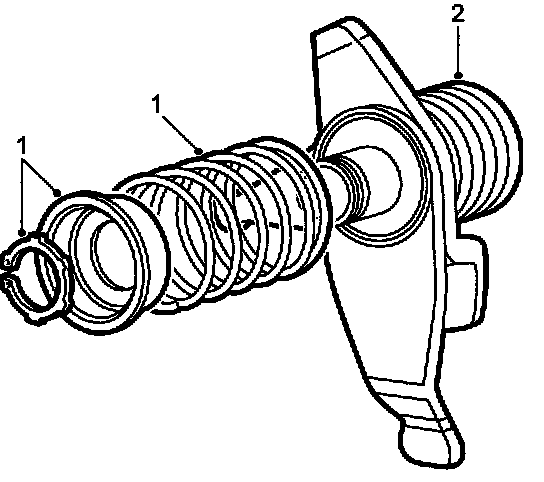

1. Fit springs to selector lever.

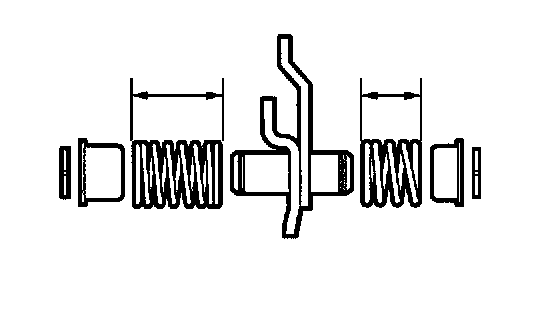

IMPORTANT: 1st/2nd sleeve and spring are shorter.





2. Press down the spring and sleeve and fit a new circlip to the selector lever.
3. Fit the second spring and sleeve in the same way. Fit a new circlip.
