Drive Shaft Seal, Left-Hand
In-car removal
1. Remove the drive shaft on the left side.
2. Remove the seal with puller 87 92 350 and puller 87 91 683.
In-car fitting

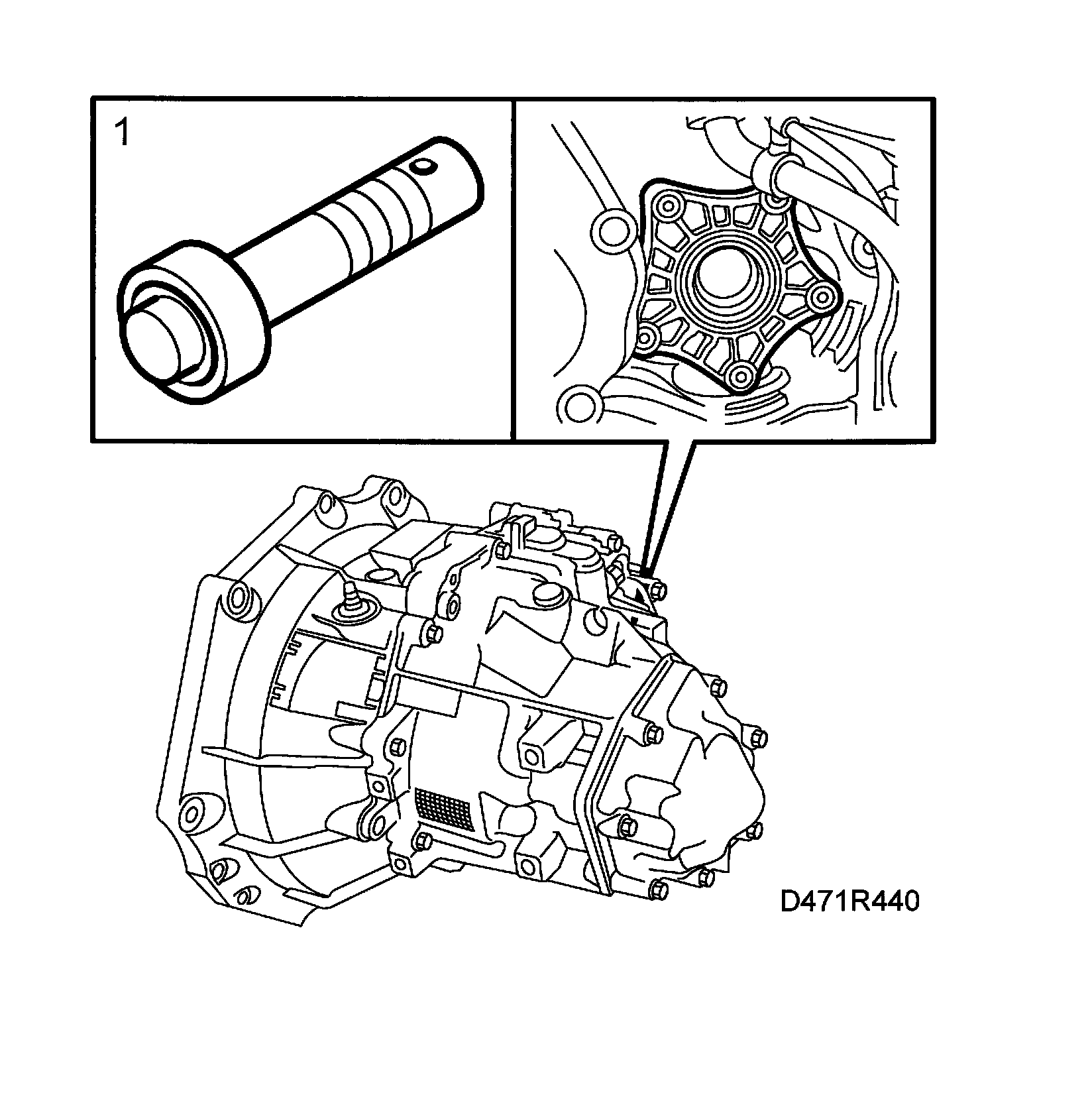

1. Tap on the new seal with drift 87 92 657.
2. Fit the drive shafts.
In-car removal
1. Remove the drive shaft on the left side.
2. Remove the seal with puller 87 92 350 and puller 87 91 683.
In-car fitting
1. Tap on the new seal with drift 87 92 657.
2. Fit the drive shafts.
