Bushes For Selector Shafts, Gearcase

To remove

IMPORTANT: Bushes should be tapped out before the gearcase is washed as the detergent can destroy the surface of the bushes.

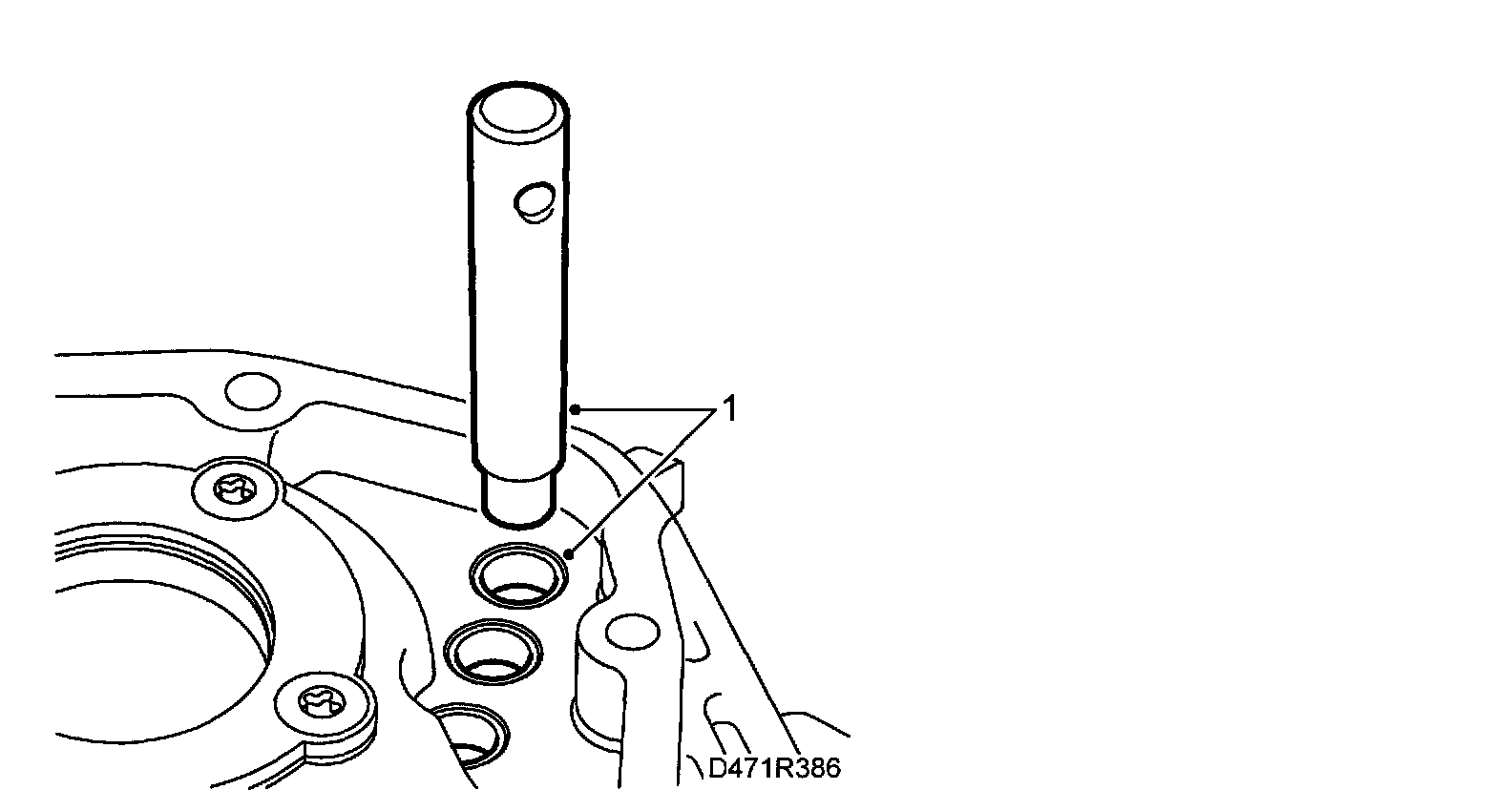

1. Carefully tap out the 3 bushings from the gearcase and the bushing for the selector shaft in the clutch housing with drift 87 91 238 .

To fit

IMPORTANT: The reverse selector shaft has no bush in the gearcase.

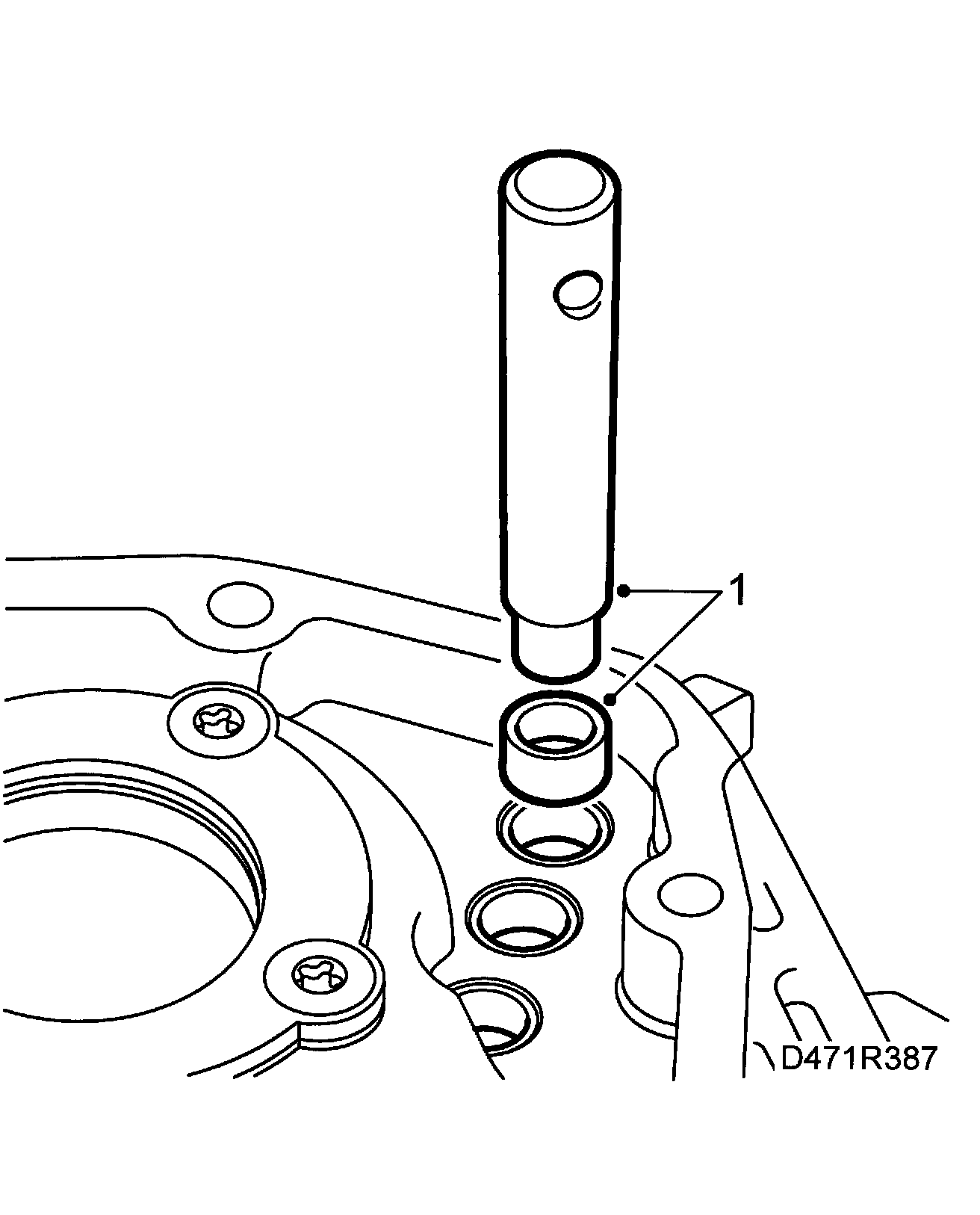

1. Carefully tap in the bushings with drift 87 91 238.
