Bearing, Output Shaft
Bearing, Output Shaft
To remove
1.
Press off the bearing with puller ring 87 92 160., puller ring 87 92 004., puller ring 87 n92 178.and fixture 87 90 636.

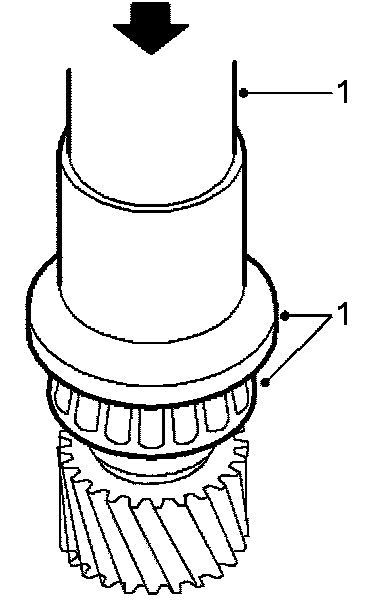

To fit
1.
Press on a new bearing until it stops with sleeve 87 92 202 and 87 91 204
