Bearing By 1st Gear Pinion on the Input Shaft

To remove

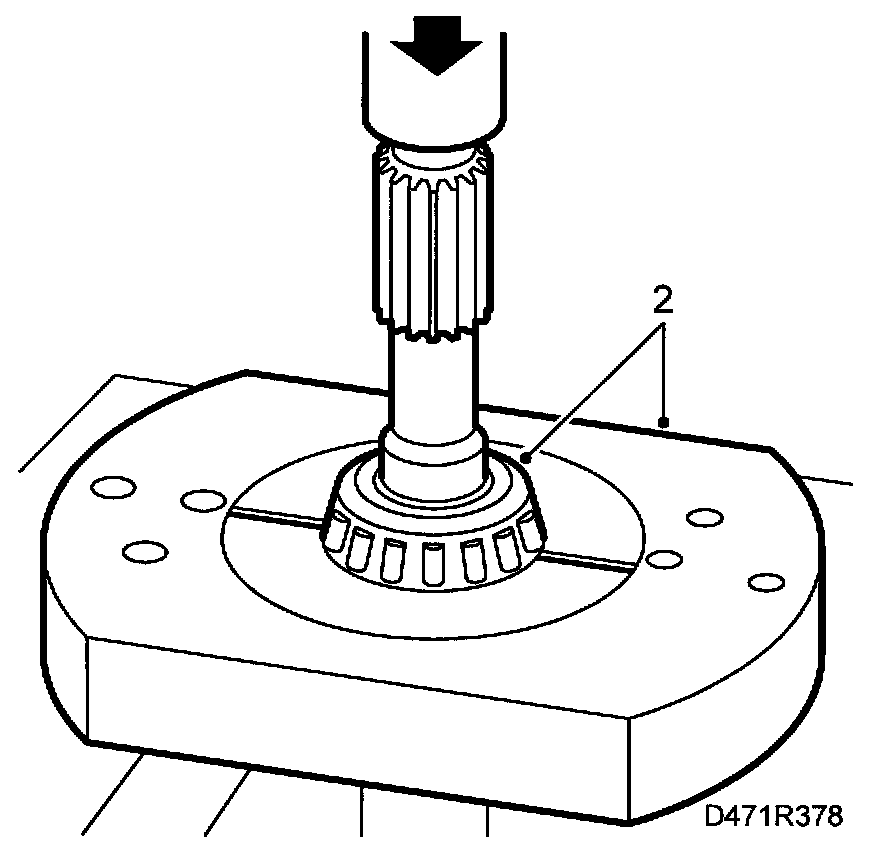

1. Fit the shaft in a press with puller ring 87 91 121 land fixture 87 90 636.





2. Press the bearing off the shaft.

To fit

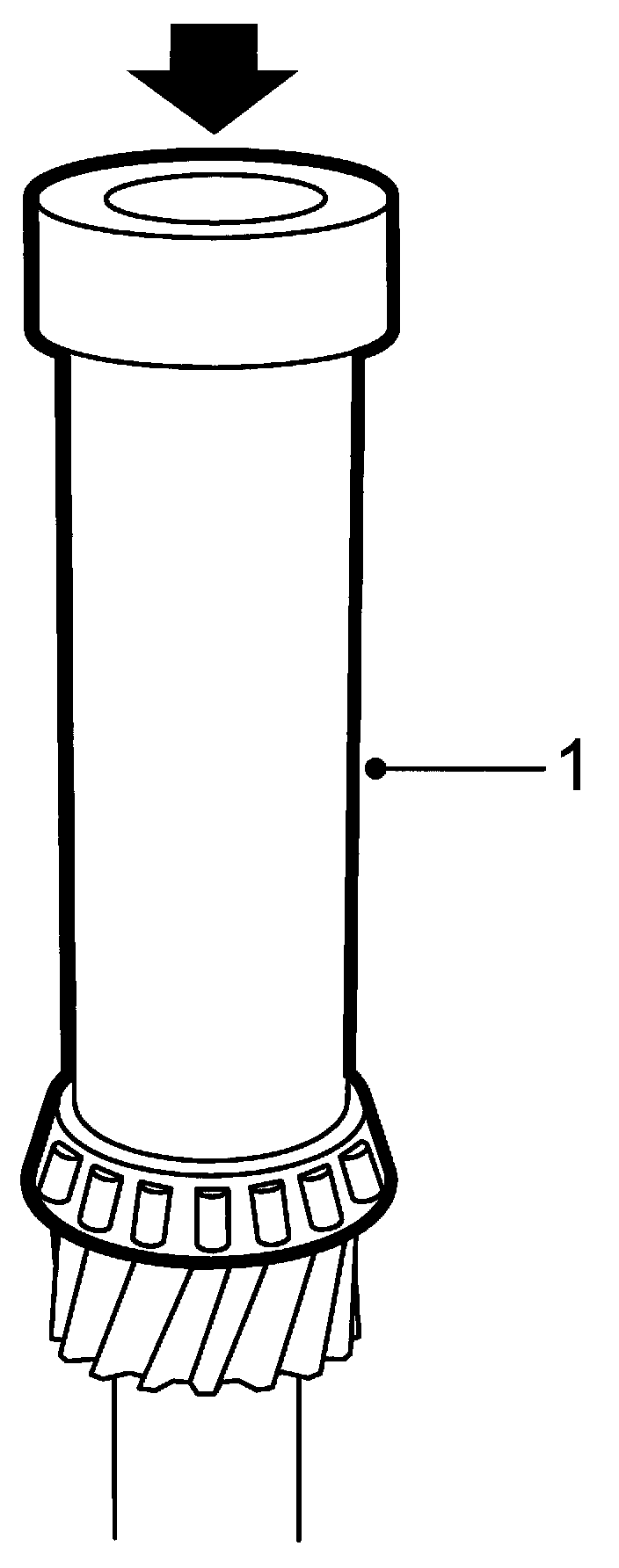

1. Fit a new bearing*Be sure to turn the bearing so that it faces the right way. Press the bearing until it stops with the sleeve from puller 87 91 261

IMPORTANT: When placing the shaft in a press, take care not to damage its surfaces.
