Gear Lockout: Description and Operation

Electronic Reverse Gear Detent

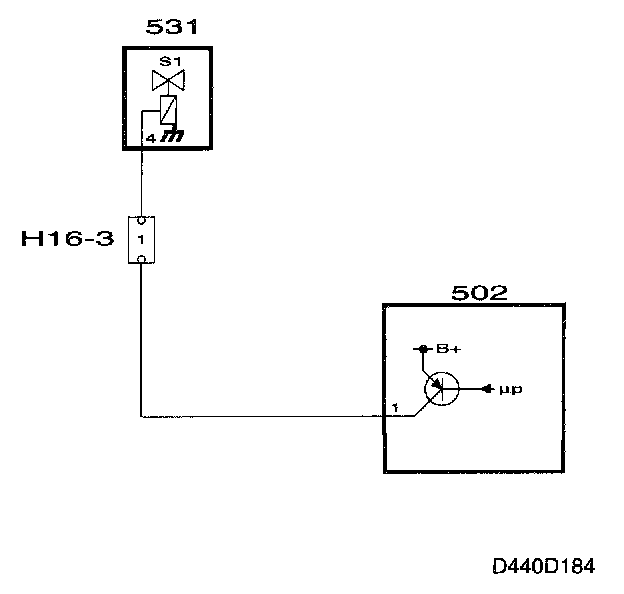

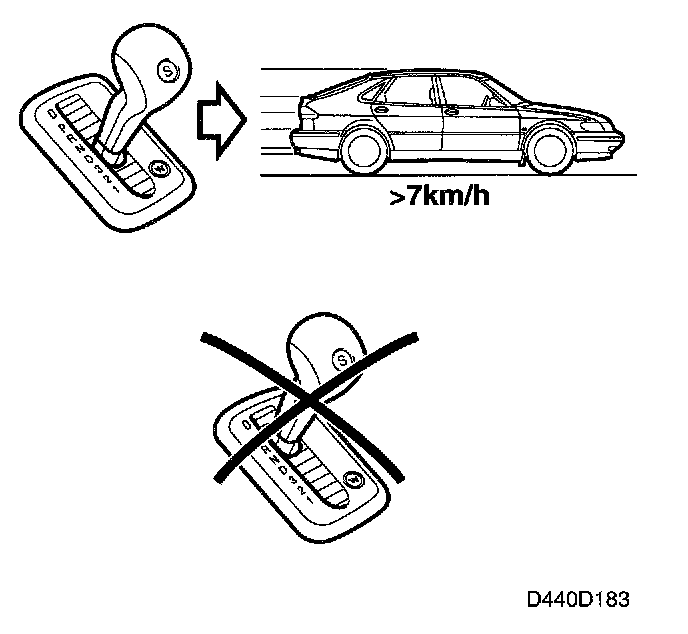

If shifting to R from D, 3, 2 or 1 is performed when the car is travelling faster than 7 km/h (4 mph), the control module will supply solenoid S1 with current so that engagement of reverse gear is prevented (brake B3 is released).

The electronic reverse gear detent is disconnected when the speed of the car is below 7 km/h (4 mph) or the selector lever is moved to a position other than R.
