System Overview
System Overview
System Overview

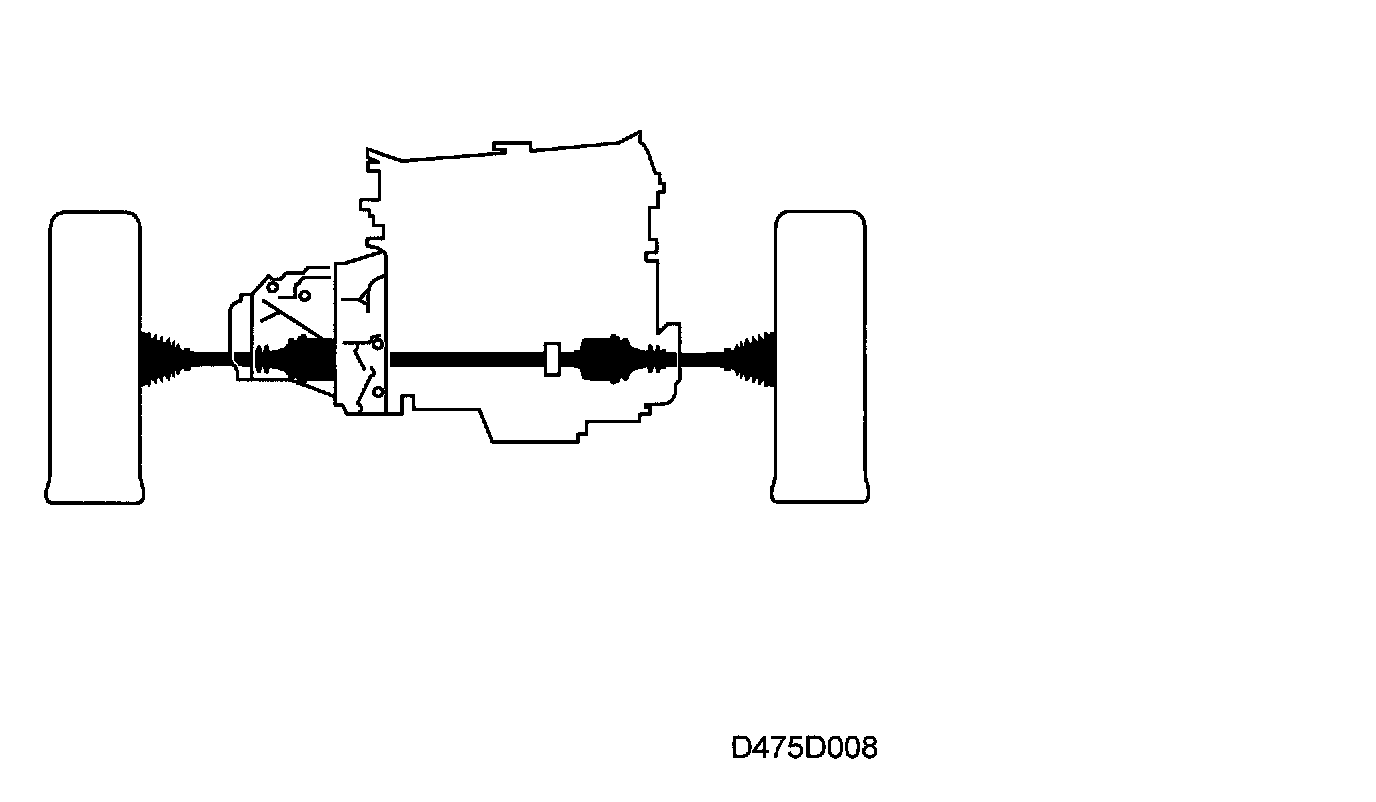

From the gearbox, the power is transmitted to the driving wheels via an inner and outer universal joint as well as two long drive shafts which makes for good directional stability even during rapid acceleration.
