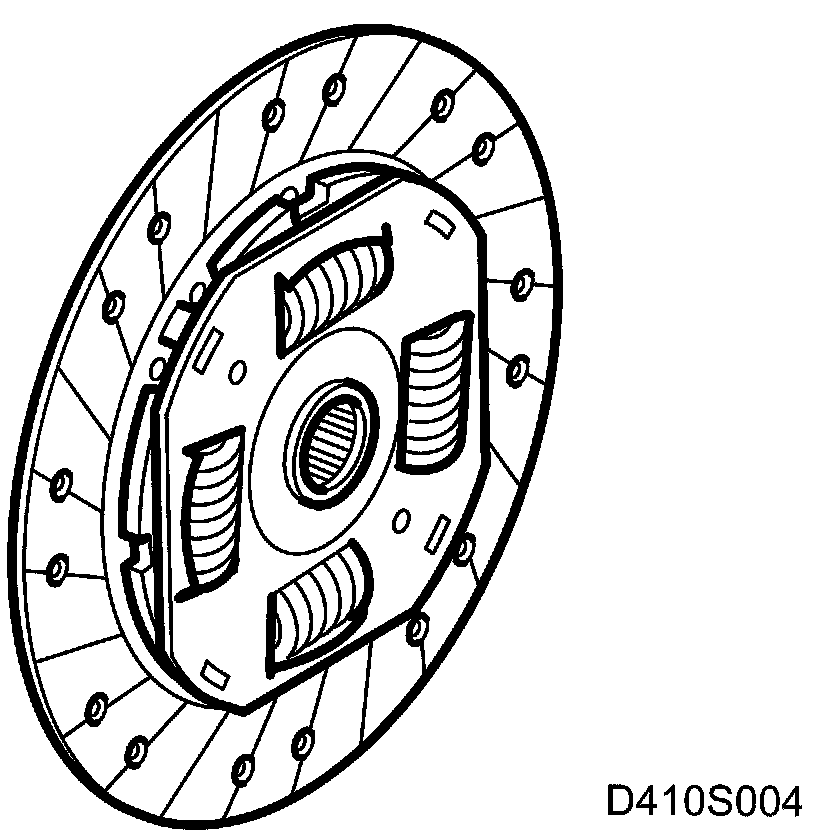

Clutch Disc






Driven Plate

Make Fichtel & Sachs

Type Single dry-plate clutch with diaphragm spring

Diameter 228 mm

Lining thickness, new 7.3 ± 0.3 mm

Lining thickness, minimum 5.5 mm
