Transmission Cooler: Description and Operation

Cooling System

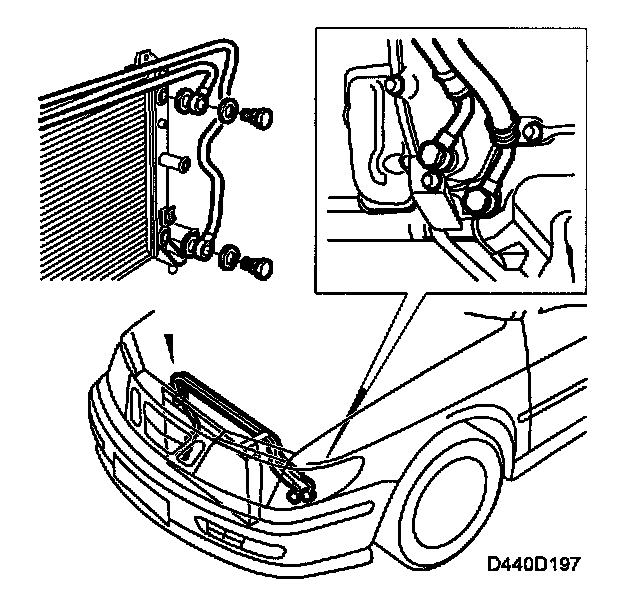

The automatic transmission is equipped with an oil cooler which is incorporated in the car's radiator, constituting a complete unit.

Fluid is circulated by the gearbox fluid pump and carried via hydraulic hoses to the radiator and back to the gearbox.
